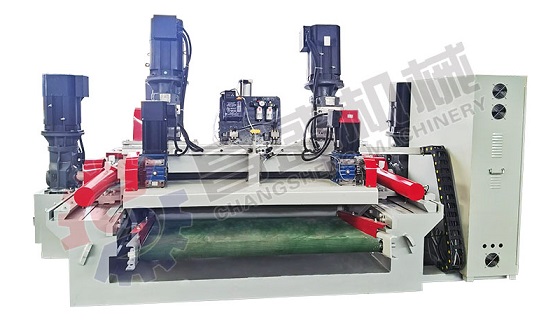

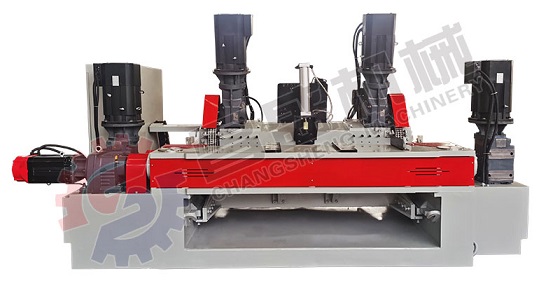

Automatic 4 Feet High Speed Plywood Veneer Peeling Machine

Spindleless veneer peeling machine is one of the equipment for producing plywood. It is suitable for continuous cutting of the remaining wood core with a card rotary cutter, and can also be used for wood with a diameter less than 700 mm.
weigth ( KG):
Max. Log Diameter ( MM):
Maximum log length:
Total prower:
Availability:
Quantity:
  • CS-4QSFX
  • Changsheng
  • 8465960000

Automatic 4 Feet High Speed Plywood Veneer Peeling Machine

plywood veneer peeling machine




veneer peeling machine

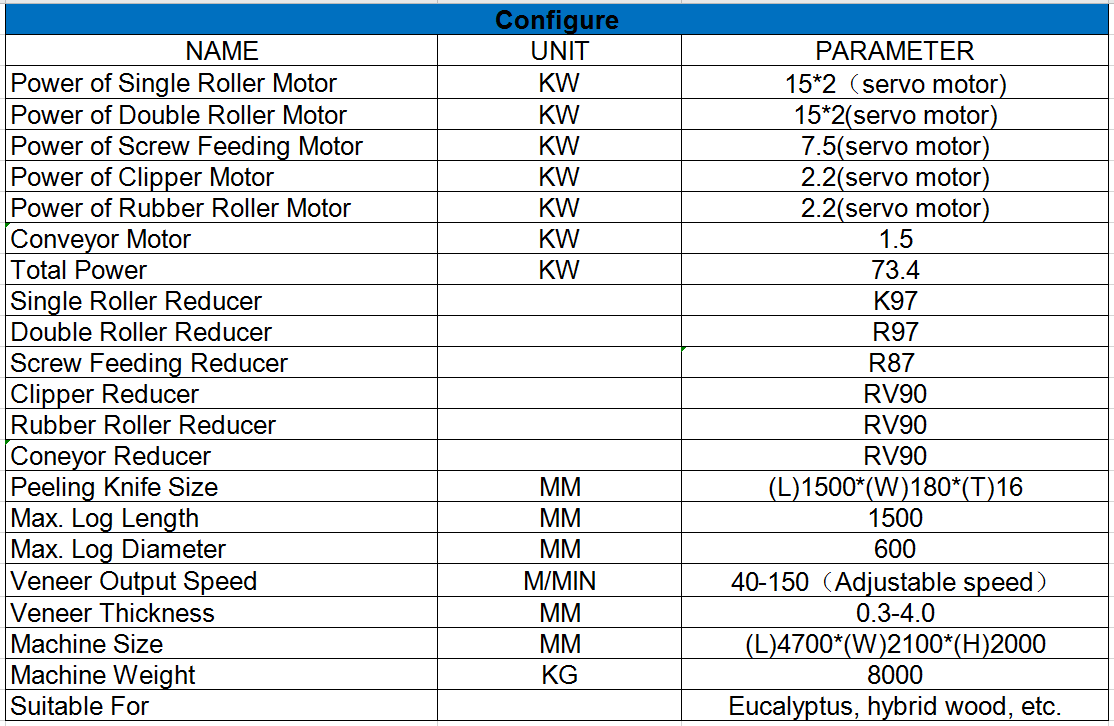

Basic Info.

Origin: Shangdong , China
Model NO. CS-4XSFX
Total Weight 8000 KG
Total Power 73.4KW


      The lead screw, guillotine, and leather-transmitting servo motors of this high-speed plywood veneer peeling machine are controlled by high-precision five-frequency inverters, and the total power of the motor is 73.4KW.

      This veneer peeling machine is designed for the rotary cutting of the logs with different hardness. The max speed of this machine can be up to 150 m/min. The produced veneers are uniform in thickness and standard in size. This machine is our main model for exporting.


high speed plywood veneer peeling machine

veneer peeling machine

high speed plywood veneer peeling machine


high speed plywood veneer peeling machine

high speed plywood veneer peeling machine

high speed plywood veneer peeling machine

high speed plywood veneer peeling machie




Pre-sale service

1) Provide the free consultation of equipment .

2) Provide the standard device and the flow chart .

3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .

4)Welcome to visit our factory .

Service during the sales

1) Inspect the machine before leaving the factory .

2) Oversea install and debug the equipment .

3) Train the first-line operatorv.

After sales service

1) 24 hours online service .

2) Provide the VIDEO with install and debug the equipment .

3) Provide technical exchanging .

high speed plywood veneer peeling machine



      Changsheng Machinery is located in Feixian County, Shandong Rotary Cutting Machine Production Base.

      Our company was founded in 1996 and is one of the earliest rotary cutting machine manufacturers in Shandong Province. Our main product includes log feeding machine, log debarking,veneer peeling machine, automatic veneer stacker, knife grinder, veneer dryer as well as whole plywood veneer production line customizing and parts including rotary cutter, rubber roller,conveyor belt etc.

     Since its establishment, the company has more than 20 years of experience in the manufacture of rotary cutting machines.Our company provides customers with 24-hour service. Our factory has always adhered to the business philosophy of "survive by quality, develop by innovation", and guided by the six core values of "customer value, teamwork, serious responsibility, courage to bear, grateful attitude, healthy and fresh". We constantly improve the structure, improve the details, provide customers with better equipment and create value for customers. our plywood machine has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.

     Changsheng people are willing to use high-quality products, perfect service to provide you with a plywood veneers production line solution.
