Automatic 4 Feet Wood Veneer Peeling Machine

This rotary cutter can be used to cut softwood and hardwood. Rotary cutting logs are less than 500 mm in diameter, and the speed of rotary cutting is adjustable.

Machine Size( MM):
Veneer Output Speed( M/MIN):
Veneer Thickness (MM):
Quantity:
  • CS-4D2S2G11-R
  • Changsheng
  • 8465960000

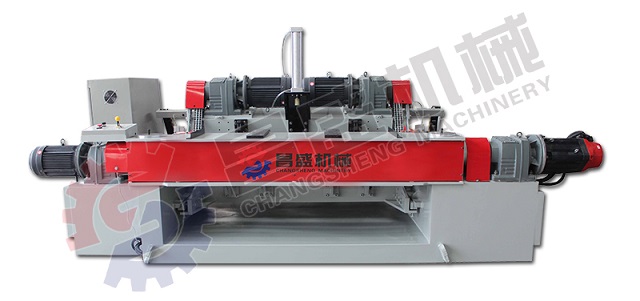

Automatic 4 Feet Wood Veneer Peeling Machine


Overview

high speed veneer peeling machine

木材

This machine is used for the high speed rotary cutting of various hardness logs,the peeled veneers are with high flatness and evenness.This machine is the main model of exporting.


Product Description

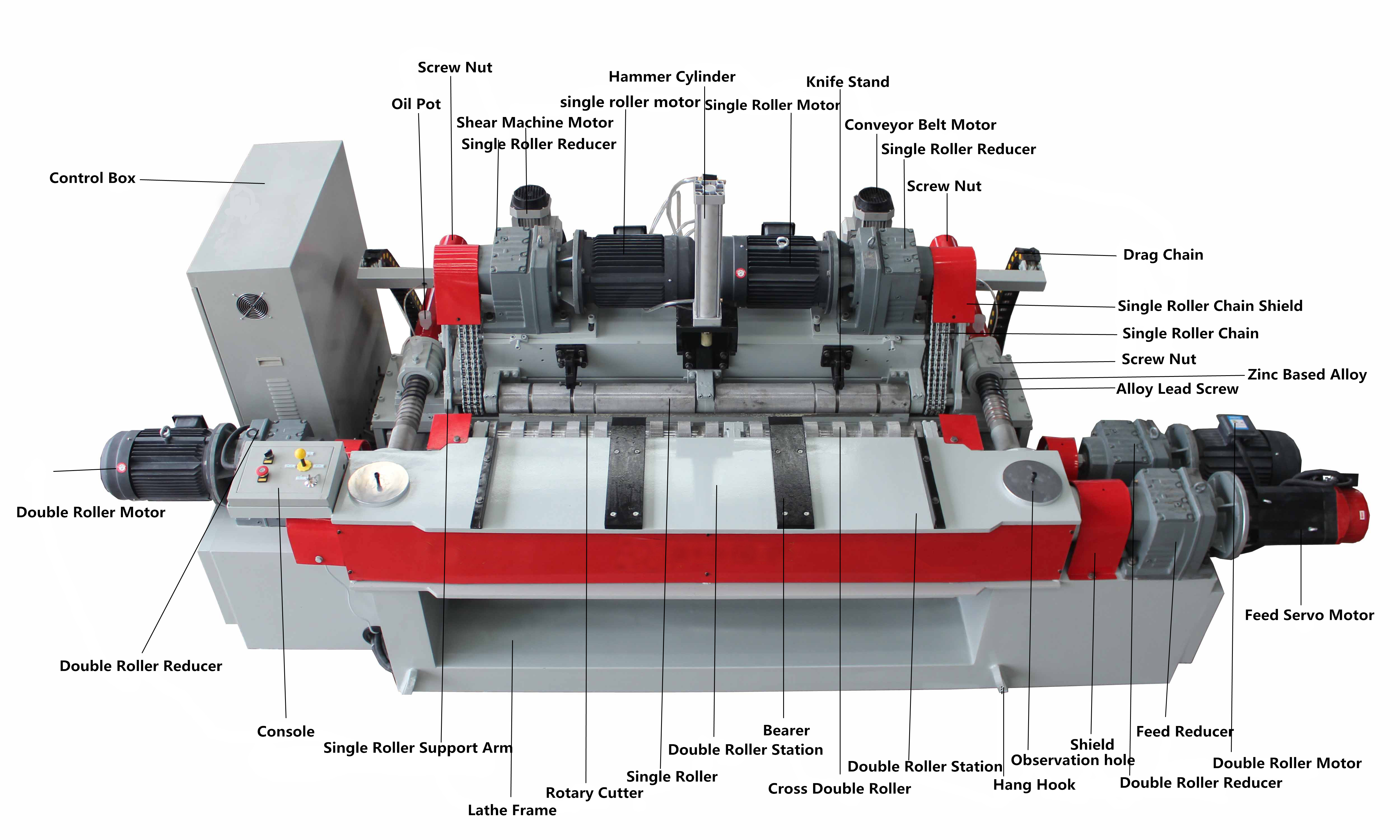

4 Feet Spindle Less High Speed Venner Peeling Machine 04

       Spindleless veneer peeling machine is one of the equipment for producing plywood. It is suitable for continuous cutting of the remaining wood core with a spindle veneer peeling machine, and can also be used for wood with a diameter less than 700 mm. The advantages of the 4-foot card-free rotary cutting machine are as follows: 1. The thickness of the processed wooden board is uniform and the surface is smooth; 2. The structure is reasonable and the operation and maintenance are convenient; 5, artificial technology is not high, in the normal peeling machine, the error is within 0.1mm.


Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11(servo motor)
Power of Clipper Motor KW 2.2(servo motor)
Power of Rubber Roller Motor KW 1.5
Total Power KW 41.2/44.7
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of Single Roller
3
Segments of Double Roller
2
Diameter of Single Roller MM 117
Diameter of Double Roller MM 122
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)180*(T)16
Max. Log Length MM 1500
Max. Log Diameter MM 500(Can be customized 600)
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-120(Adjustable speed)
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4700*(W)2100*(H)1700
Machine Weight KG 7500
Suitable For
Eucalyptus, hybrid wood, etc.


Indian red eucalyptus, hardwood, speed 100 m / min

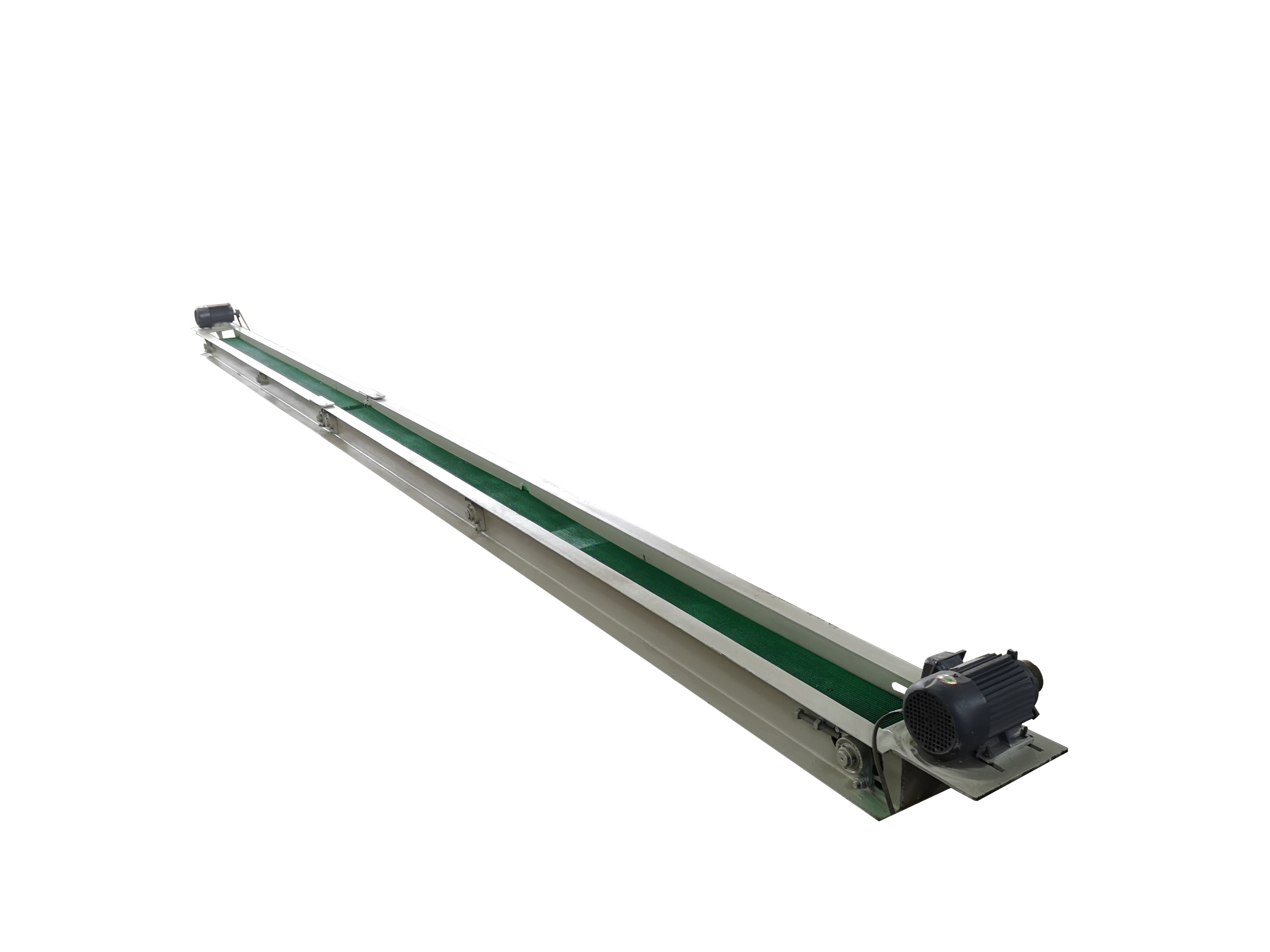

wood core transmission machine


Rotary cutting machine can be used with wood core conveyor to transfer and collect the remaining wood core

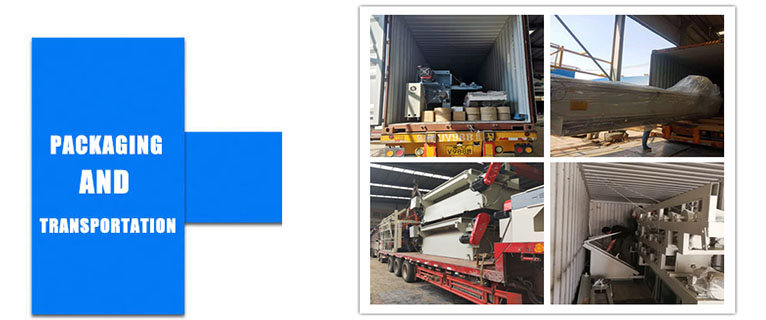

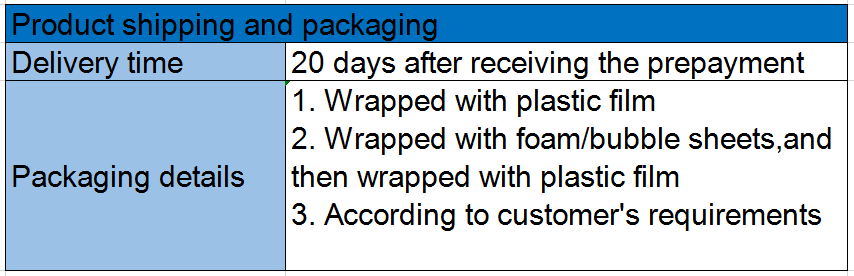

Packaging & Shipping


发货





Strentch film /wood case or according to customers requirement

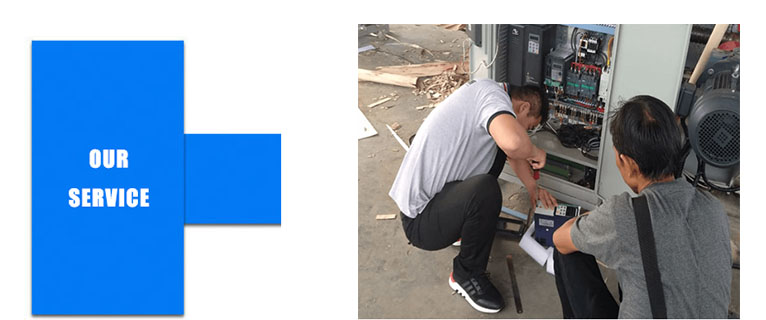

Our Services

微信图片_20190827161259

Presale service

1.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation

2.Design the machine free of charge, according to customer's production line and production cost,

3. Make the workshop and production line layout free of charge, according to customers' factory land

Medium-sales service

1.Video for the manufacturing process as customers requirement

2.Machine modifying according customers' suggestion

3.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement

After-sale services

1.One year warranty for main machine, cost price for vunerable parts

2.Experienced engineer is avaiable for the machine installation and worker training

Company Information

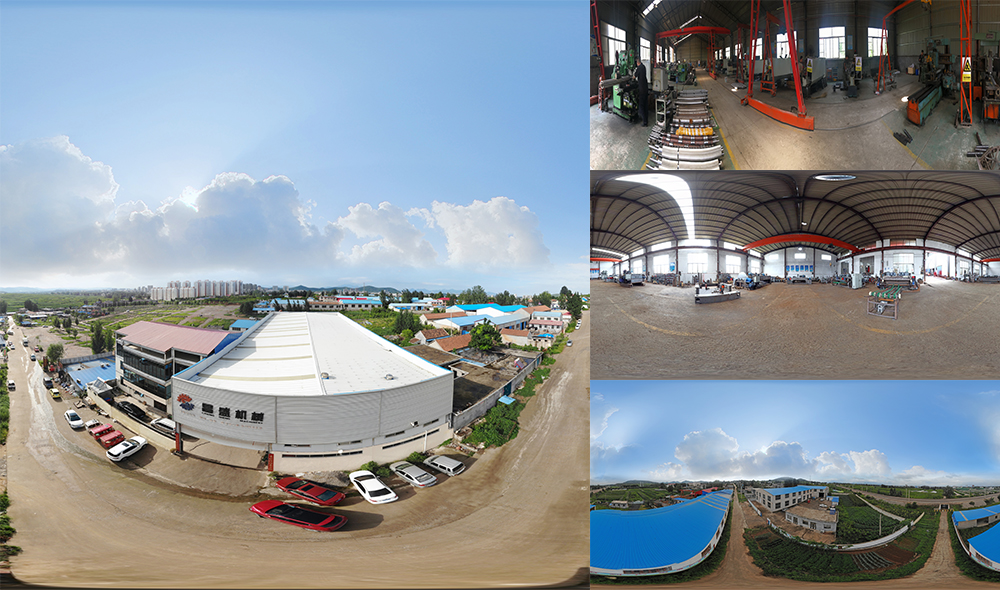

未标题-3

High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.



Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.

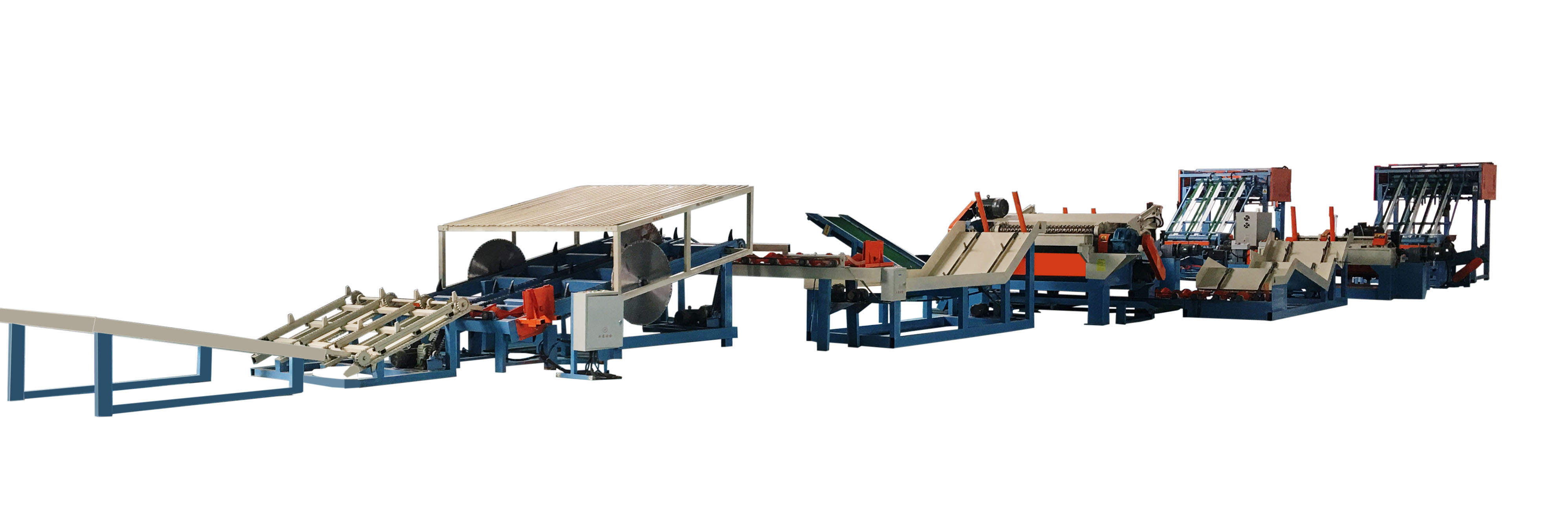

 plywood veneer production line

Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
