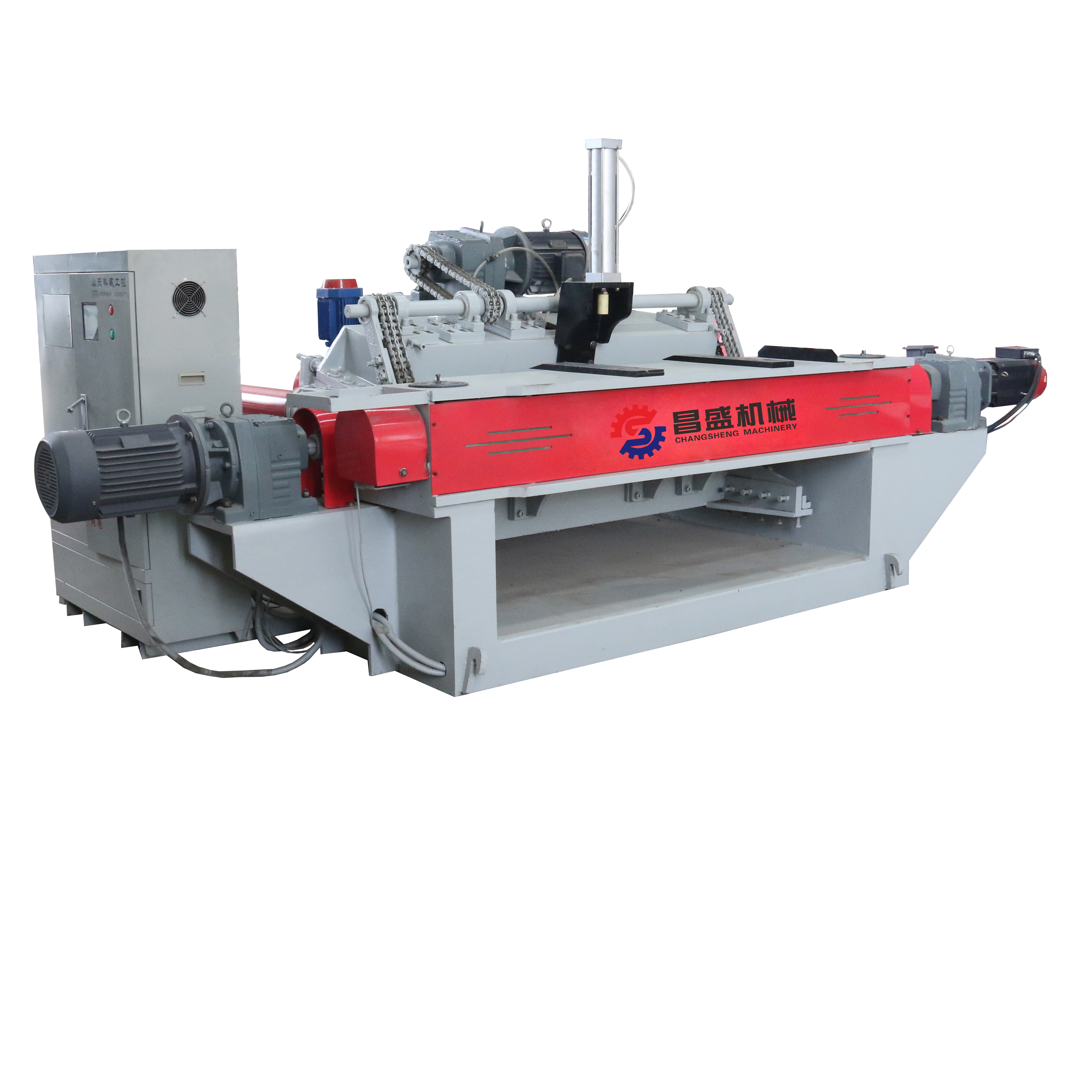

High Quality 4 Feet Wood Veneer Peeling Machine

This rotary cutter can be used to cut softwood and hardwood. Rotary cutting logs are less than 500 mm in diameter, and the speed of rotary cutting is adjustable.

Machine Weight ( KG):
Machine Size ( MM):
Veneer Output Speed ( M/MIN ):
Quantity:
  • CS-4D1S2G1-1
  • Changsheng
  • 8465960000

High Quality 4 Feet Wood Veneer Peeling Machine


Overview

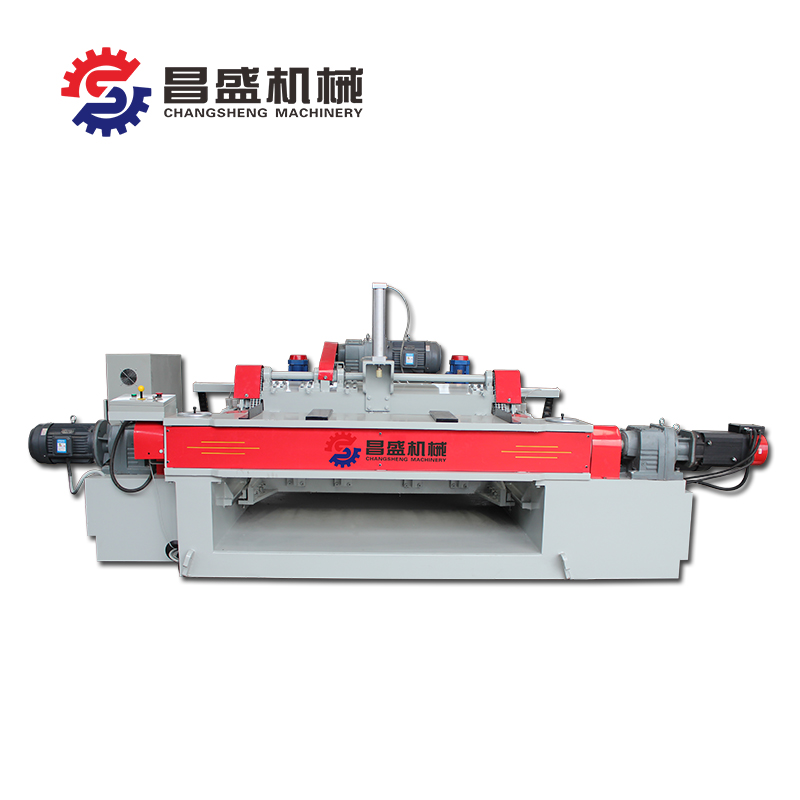

wood veneer peeling machine

      The wood veneer  peeling machine is the main equipment in the production of plywood. It is a continuous veneer strip that converts logs of a certain length and diameter into a veneer of a certain size after cutting. The veneer rotary cutting machine is closely related to the production and quality of plywood.

Product Description

      This rotary cutter can be used to cut softwood and hardwood. Rotary cutting logs are less than 500 mm in diameter, and the speed of rotary cutting is adjustable.

wood veneer peeling machine


1 .An advanced CNC system ensures the veneers cut uniformly with a thickness tolerance of ± 0.05mm and width tolerance of ±  2.5mm.

2.A user-friendly interface helps the operators spot any problems.

3. A two-in-one structure, peeling and cutting together, reduces both the space and operators.Your costs is greatly lowered.

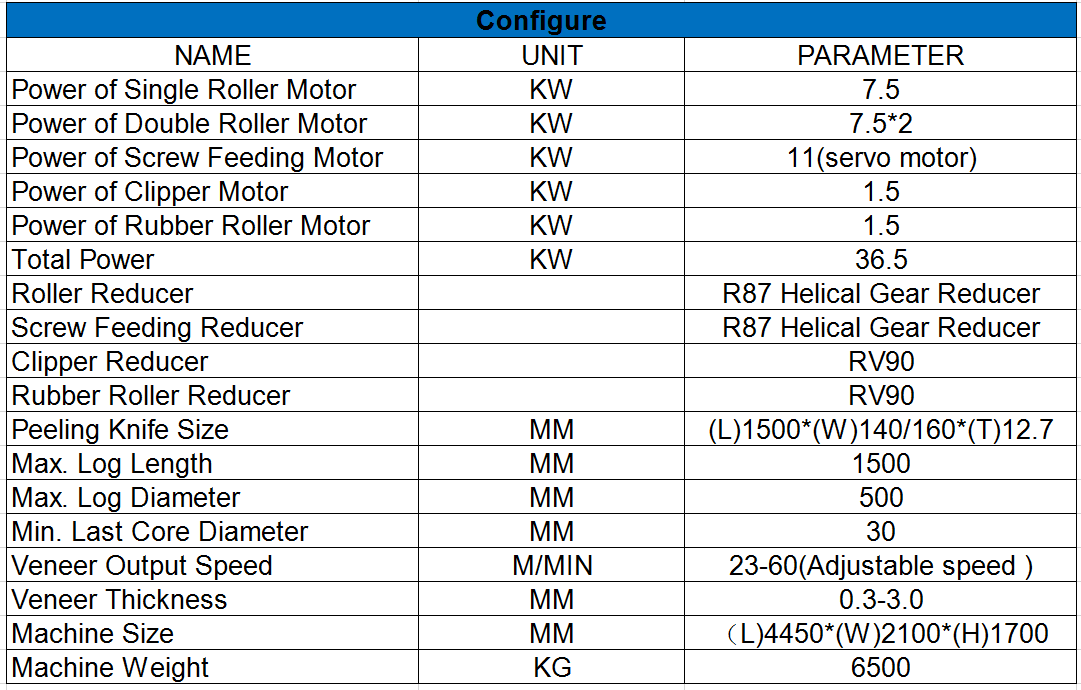

Configure

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11(servo motor)
Power of Clipper Motor KW 1.5
Power of Rubber Roller Motor KW 1.5
Total Power KW 33/36.5
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of single roller
2
Segments of double roller
2
Diameter of single roller MM 117
Diameter of double roller MM 122
Diameter of rubber roller MM 150
Peeling Knife Size MM (L)1500*(W)140/160*(T)12.7
Max. Log Length MM 1500
Max. Log Diameter MM 500
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 23-60(Adjustable speed )
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)4450*(W)2100*(H)1700
Machine Weight KG 6500
Suitable For
Poplar, eucalyptus etc.
small wood core veneer peeling machine

Small wood core venee peeling machine


wood veneer peeling machine

4 feet veneer peeling machine

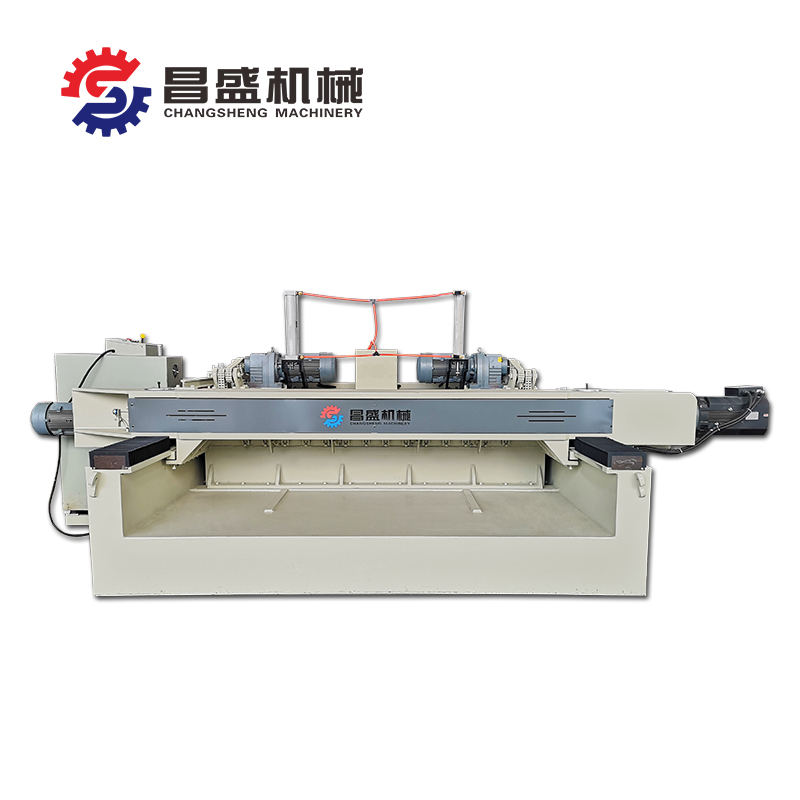

6 feet veneer peeling machine

6 feet veneer peeling machine

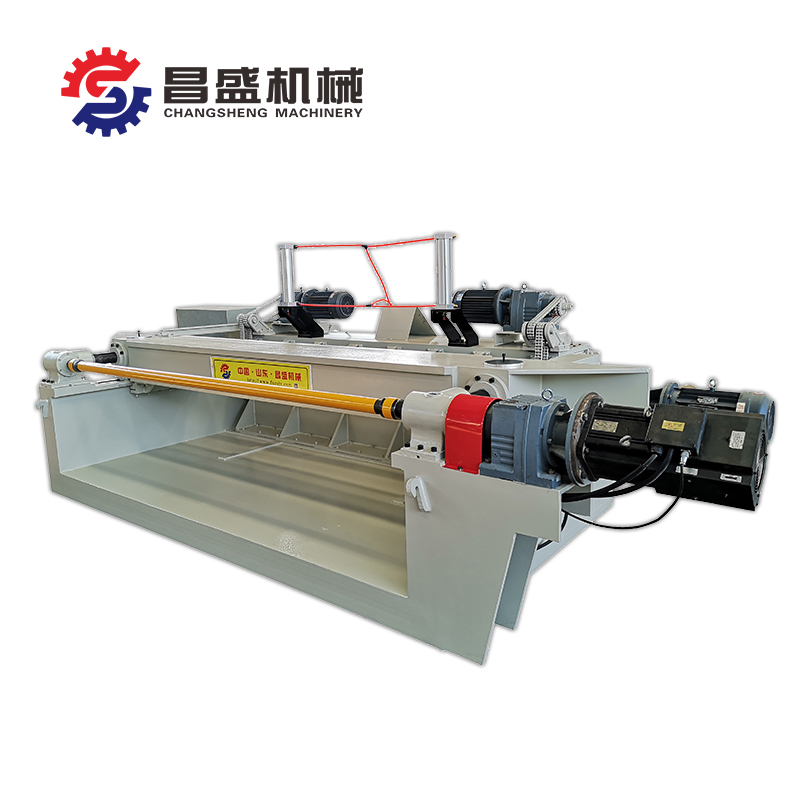

8 feet veneer peeling machine

8 feet veneer peeling machine

1. We are a manufacturer of rotary cutters, we have 4 feet, 6 feet, 8 feet and even smaller ones。

2.This is one of our machines, we can also design and manufacture machines according to your requirements

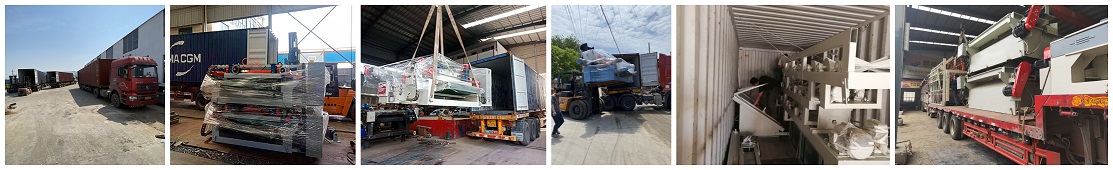

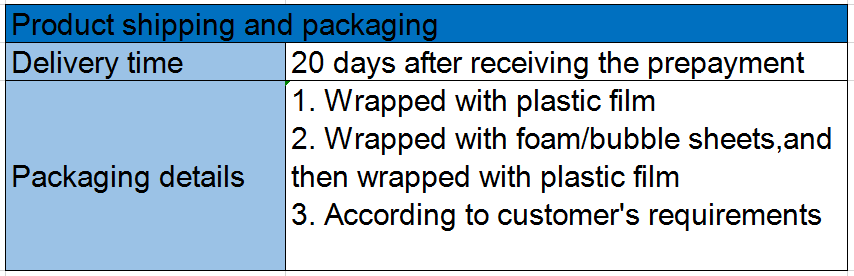

Packaging & Shipping

1.发货

Strentch film  or according to customers requirement

All machine packed with water-proof plastic as outer-protective.Ensure the machine well during the long transportation.

Our Services


微信图片_20190702095541-1

Presale service

1.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation

2.Design the machine free of charge, according to customer's production line and production cost,

3. Make the workshop and production line layout free of charge, according to customers' factory land



生产图片4

Medium-sales service

1.Video for the manufacturing process as customers requirement

2.Machine modifying according customers' suggestion

3.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement



员工在济南邦德激光股份有限公司参观学习-15-裁切

After-sale services

1.One year warranty for main machine, cost price for vunerable parts

2.Experienced engineer is avaiable for the machine installation and worker training



Company Information

未标题-1

High-quality product quality and considerate customer service are the most significant responsibility of Changsheng Wood Machinery to each customer. Our company provides customers with 24-hour service. Companies' adhering to the "quality of survival, innovation and development" business philosophy: our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.



Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves. We believe that in the days coming, we will achieve a better tomorrow together with our customers.



Changsheng Wood Machinery comes from China, serves all the world!




FAQ

Q: A FACTORY OR A DEALERS?

A: We are a factory more than 20 years in making wood based panel machines, not a dealers.

Q: DELIVERY TIME?

A: Generally 20 days after receiving the down payment.

Q: CAN WE GO TO VISIT YOUR FACTORY?

A: Yes, you can visit our factory for free.

Q: SERVICE SYSTEM?

A: One-year warranty, and we supply parts and service all the time.

Q: MOQ?

A: Our MOQ is 1 set.
