Hydraulic 4 Feet Plywood Veneer Peeling Machine

This 4 ft plywood veneer peeling machine is used for cork rotary cutting. The low-speed rotary cutting of logs under 450 mm diameter is easy to operate.

Max. Log Length:
Max. Log Diameter:
Veneer Output Speed:
Quantity:
  • CS-4D1S1G1-1
  • Changsheng
  • 8465960000

Hydraulic 4 Ft Plywood Veneer Peeling Machine

Overview
4 feet veneer peeling machine


This  machine is used for the low speed rotary cutting of softwood with diameter lower than 450mm,easy to operate.

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5
Power of Double Roller Motor KW 7.5
Power of Screw Feeding Motor KW 7.5
Power of Clipper Motor KW 1.5
Power of Rubber Roller Motor KW 1.5
Total Power KW 25.5
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
80
Rubber Roller Reducer
80
Segments of Single Roller
2
Segments of Double Roller
1
Diameter of Single Roller MM 125
Diameter of Double Roller MM 125
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)140*(T)12.7
Max. Log Length MM 1500
Max. Log Diameter MM 450
Min. Last Core Diameter MM 32
Veneer Output Speed M/MIN 43
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4420*(W)1950*(H)1700
Machine Weight KG 4200
Suitable For
Poplar, cotton wood, etc
Product Description





4 feet rotary cutting machine


Advantages


1. This product has digital control system; high strength wear-resistant;

2.Its stable structure can be suitable for wood, Poplar, cotton wood, etc

3.The integrated structure improves the space utilization rate, reduces the workers quantity.




Packaging & Shipping
发货-1


All machine packed with water-proof plastic as outer-protective.Ensure the machine well during the long transportation.


According to customer's requirements

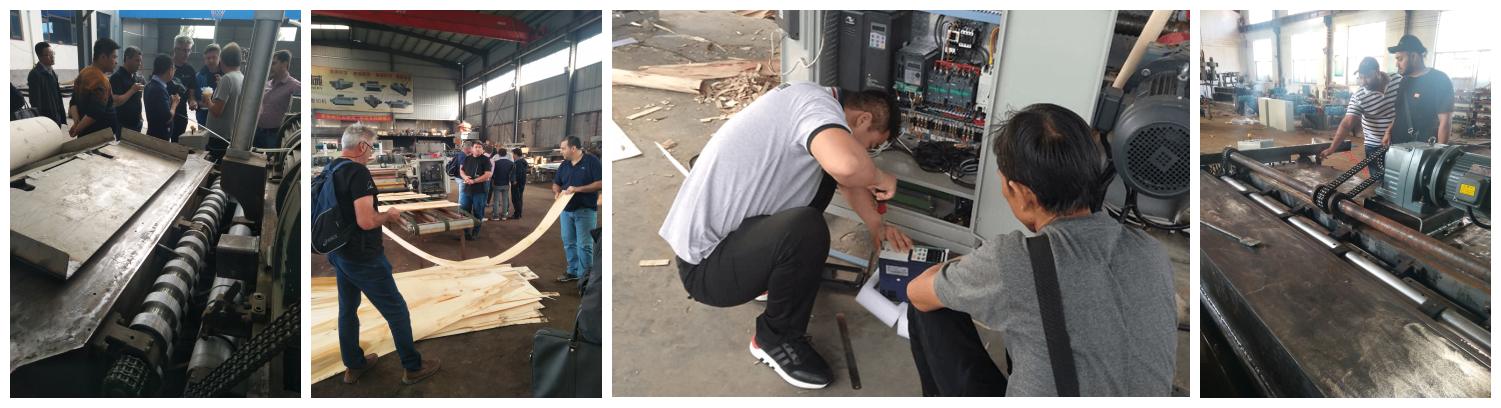

Our Services

服务-2


Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.



In-sale services:

Send  technicians to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.



After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.


About Us

微信图片_20190827161204

More than 25 years development'

Located in Linyi City, Shandong province,

One of the largest wood based panel production base in China.

Main products including: veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment.


FAQ

微信图片_20190828142329

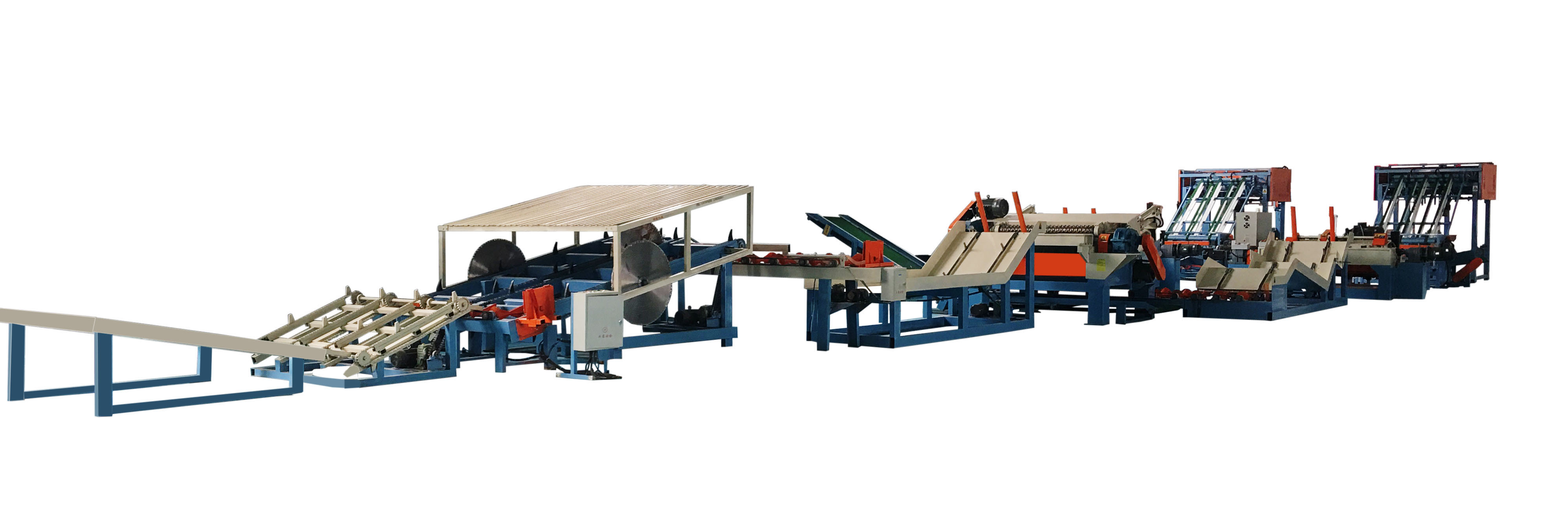

plywood veneer production line

Changsheng Wood Machinery comes from China, serves all the world!
