Rotary Plywood Veneer Peeling Machine 4 Feet Spindle less High Speed

Spindle less veneer peeling machine is used for make veneer .This veneer peeling machine is designed for the rotary cutting of the logs with different hardness. The max speed of this machine can be up to 120 m/min.

Color:
Size:
weigth:
Quantity:
  • CS-4D21S21G12Y
  • Changsheng
  • 8465960000

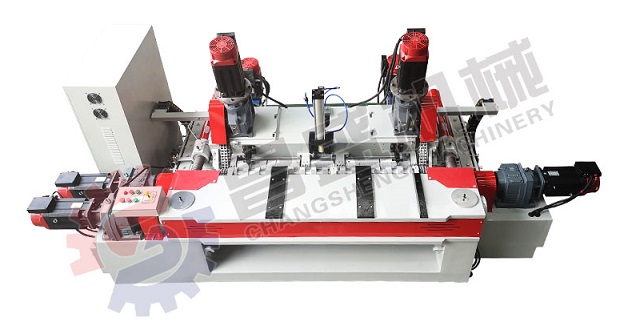

4 Feet Rotary Spindle Less High Speed Plywood Veneer Peeling Machine

Product Description

veneer peeling machine

Main Features

*All the installation surfaces are all milled surfaces

*All the machine parts are standard universal parts.

*High power, high speed rotary cutting power.

*Full servo motor guarantees the high accuracy of rotary cutting.

*Thickened chrome roller.

*Quenching hardened screw.

*Wood core hit cylinder, automatic last piece cutting.

*Automatic oil supply.

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2(servo motor)
Power of Double Roller Motor KW 7.5*2(servo motor)
Power of Screw Feeding Motor KW 7.5(servo motor)
Power of Clipper Motor KW 2.2(servo motor)
Power of Rubber Roller Motor KW 2.2(servo motor)
Total Power KW 41.9
Single Roller Reducer
K77
Double Roller Reducer
R87
Screw Feeding Reducer
R87
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of Single Roller SET 3
Segments of Double Roller SET 2
Diameter of Single Roller MM 117
Diameter of Double Roller MM 122
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)180*(T)16
Max. Log Length MM 1500
Max. Log Diameter MM 500(Can be customized 600)
Min. Last Core Diameter MM 28
Veneer Output Speed M/MIN 30-120(Adjustable speed)
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4600*(W)1950*(H)1800
Machine Weight KG 7000

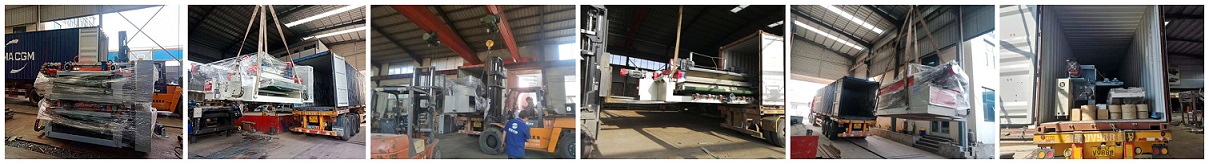

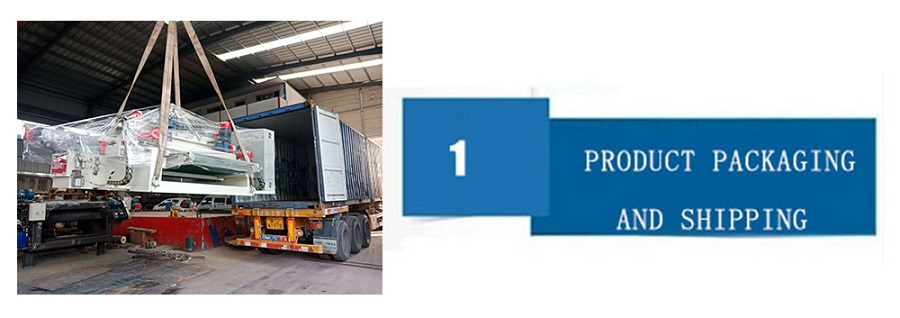

Packing & Delivery

changsheng machinery

Packaging
Size (L)4600*(W)1950*(H)1800
Weight 7000KG

If container is too tigher,we will use pe film for packing or pack it according to customers special request.

our market

chengsheng machinery

Our machines have a high domestic market share and are exported to many countries. Such as the United States, Vietnam, India, Indonesia, Malaysia, Pakistan, Mexico, Brazil, etc.

微信图片_20190828142329

changsheng machinery

7 peoples



We have a professional after-sales service team with 7 professional technicians.There are 300 working days a year to serve customers.



20 years



We have been engaged in woodworking machinery for 20 years and have extensive industry experience.



365 days



We are waiting for your call for 365 days, providing you with services such as purchase and support.



3000 customers



More than 3,000 customers purchase our equipment and are satisfied with the equipment and service.



10000 experiments



Our factory has conducted more than 10,000 innovative experiments since its inception.



Only to produce the most suitable equipment for the customer.
