Small Spindle Less Wood Core Veneer Peeling Machine
Product show
product description
The workable diameter can be range from 10 mm to 110 mm.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 4 |
| Power of Feeding Motor | KW | 2.2 |
| Automatic Shaft Motor | KW | 1.5 |
| Total Power | KW | 7.7 |
| Single Roller Reducer | 150 | |
| Feeding Method | 580mm diameter gear | |
| Segments of Single Roller | SET | 2 |
| Segments of Double Roller | SET | 6 |
| Diameter of Single Roller | MM | 63 |
| Diameter of Double Roller | MM | 62 |
| Peeling Knife Size | MM | 1400*130*12.7 |
| Max. Log Length | MM | 1400 |
| Max. Log Diameter | MM | 110 |
| Min. Last Core Diameter | MM | 10 |
| Veneer Output Speed | M/MIN | 35 |
| Veneer Thickness | MM | 0.4-1.9 |
| Machine Size | MM | 2900*1650*1200 |
Packaging & Shipping
If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
*Overseas service person is available.

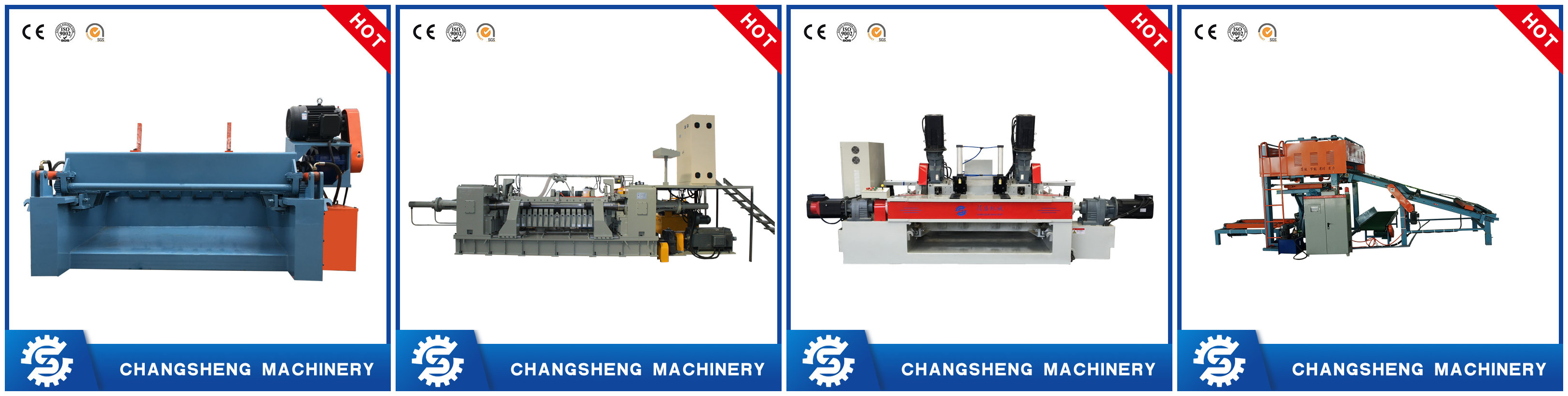

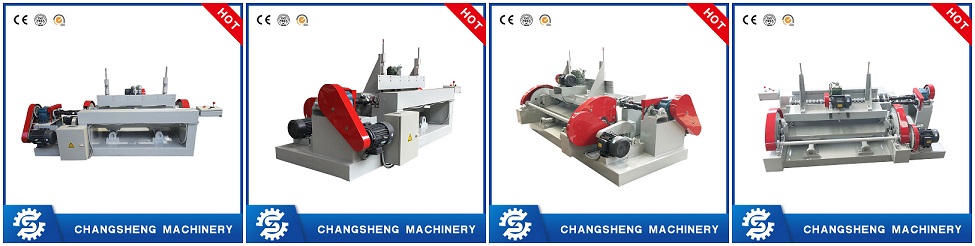

More products
