Spindle Less 4 Feet Core Veneer Peeling Machine

It is used for high-speed rotary cutting of various hardness logs, with uniform thickness and standard size. It is the mainstream model for export.

Machine Weight( KG):
Veneer Thickness( MM):
Max. Log Length( MM):
Quantity:
  • CS-4D2S2G11-2
  • Changsheng
  • 8465960000

Spindle Less 4 Feet Core Veneer Peeling Machine

Overview




high speed veneer peeling machine



High speed veneer peeling machine is important equipment in plywood production line and venner production line. It main to peeling off small diameter (max diameter to 700mm),wood and peeling plywood core plate, automatic peeling, cutting veneer, fast. Veneer size can be  change, fully automated production. For eucalyptus, hybrid wood, etc. and so on.




Product Description


veneer peeling machine



This machine is used for the high speed rotary cutting of various hardness logs,the peeled veneers are with high flatness and evenness.This machine is the main model of exporting.

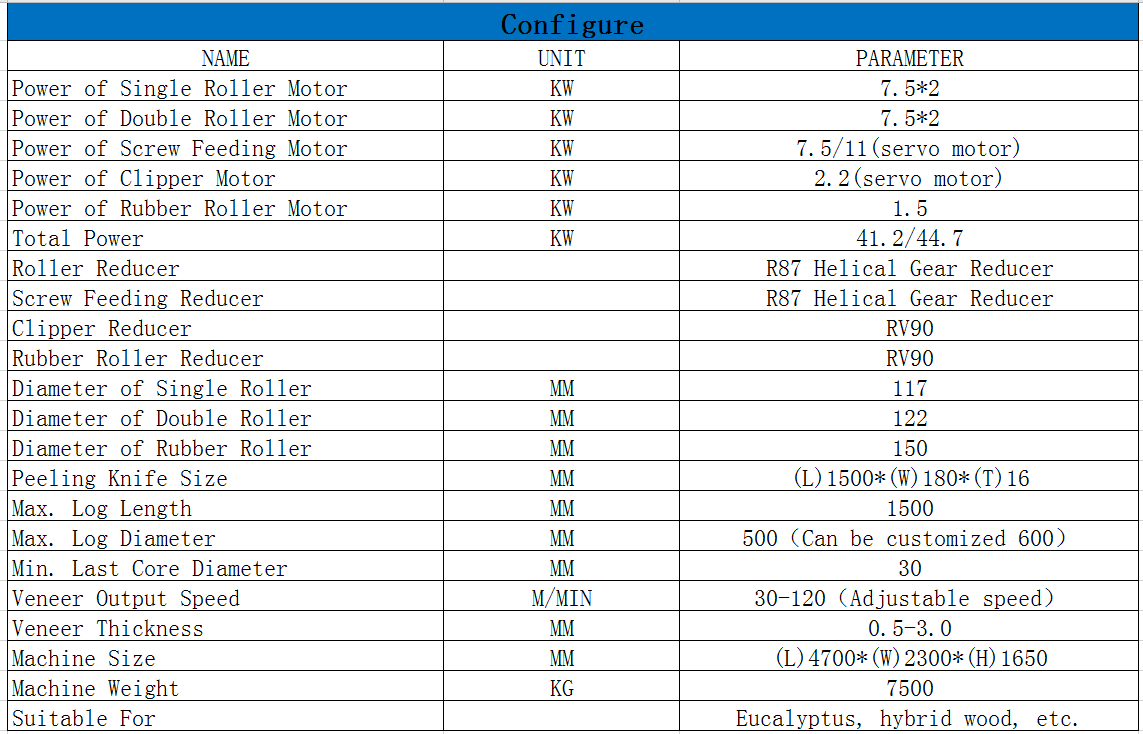

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11(servo motor)
Power of Clipper Motor KW 2.2(servo motor)
Power of Rubber Roller Motor KW 1.5
Total Power KW 41.2/44.7
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV90
Rubber Roller Reducer
RV90
Segments of Single Roller
3
Segments of Double Roller
2
Diameter of Single Roller MM 117
Diameter of Double Roller MM 122
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)180*(T)16
Max. Log Length MM 1500
Max. Log Diameter MM 500(Can be customized 600)
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-120(Adjustable speed)
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4700*(W)2100*(H)1700
Machine Weight KG 7500
Suitable For
Eucalyptus, hybrid wood, etc.


Plywood veneer production line

8尺生产线-1

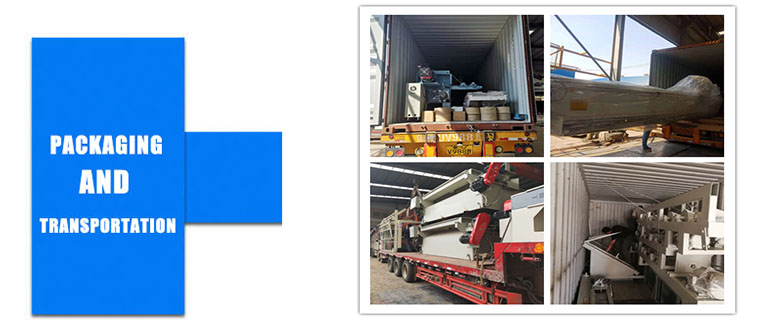

Packaging & Shipping

发货

Size (L)4700*(W)2100*(H)1700
Weight 7500 KG
Packaging details Standard packing for container delivery/Packed as client’s request.


Our Services
微20190822112343_副本



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
