Spindle-less 4 Feet Plywood Veneer Peeling Machine

Woodworking Spindle Less Veneer Rotary Peeling Lathe Machine for Veneer

Machine Size(MM):
Machine Weight(KG):
Suitable For :
Quantity:
  • CS-4D1S1G1-2
  • Changsheng
  • 8465960000

Spindle-less 4 Feet Plywood Veneer Peeling Machine

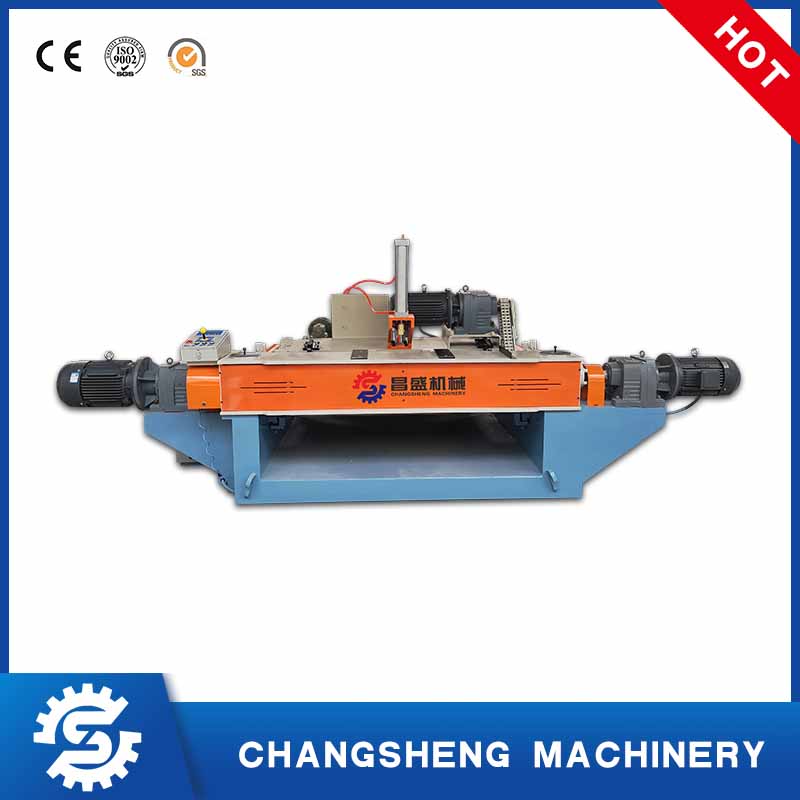

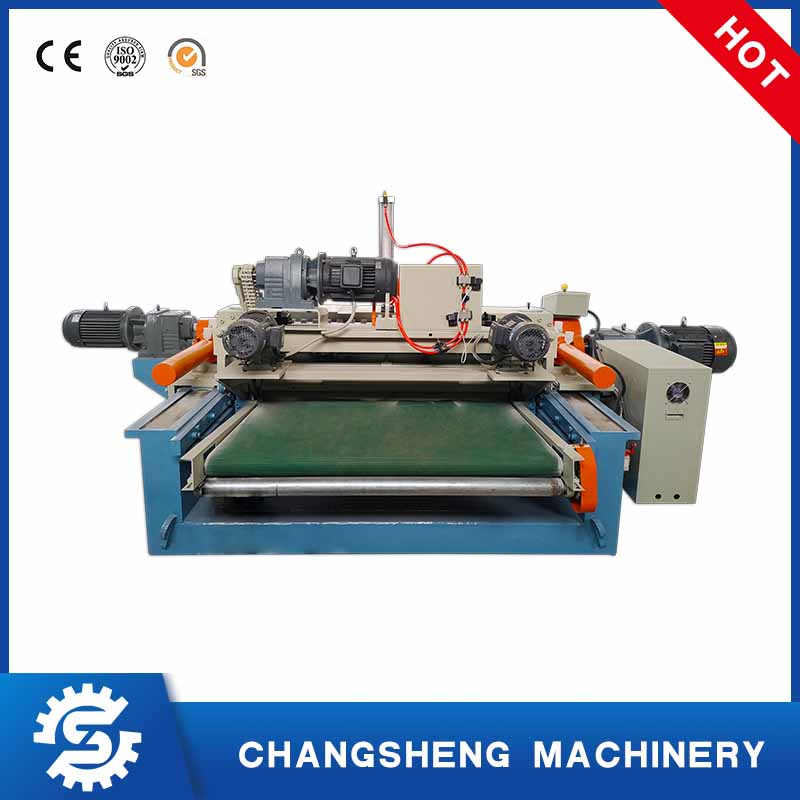

4 feet rotary cutting machine

Front of the machine


4 feet rotary cutting machine

Behind the machine

      This  machine is used for the low speed rotary cutting of softwood with diameter lower than 450mm,easy to operate.

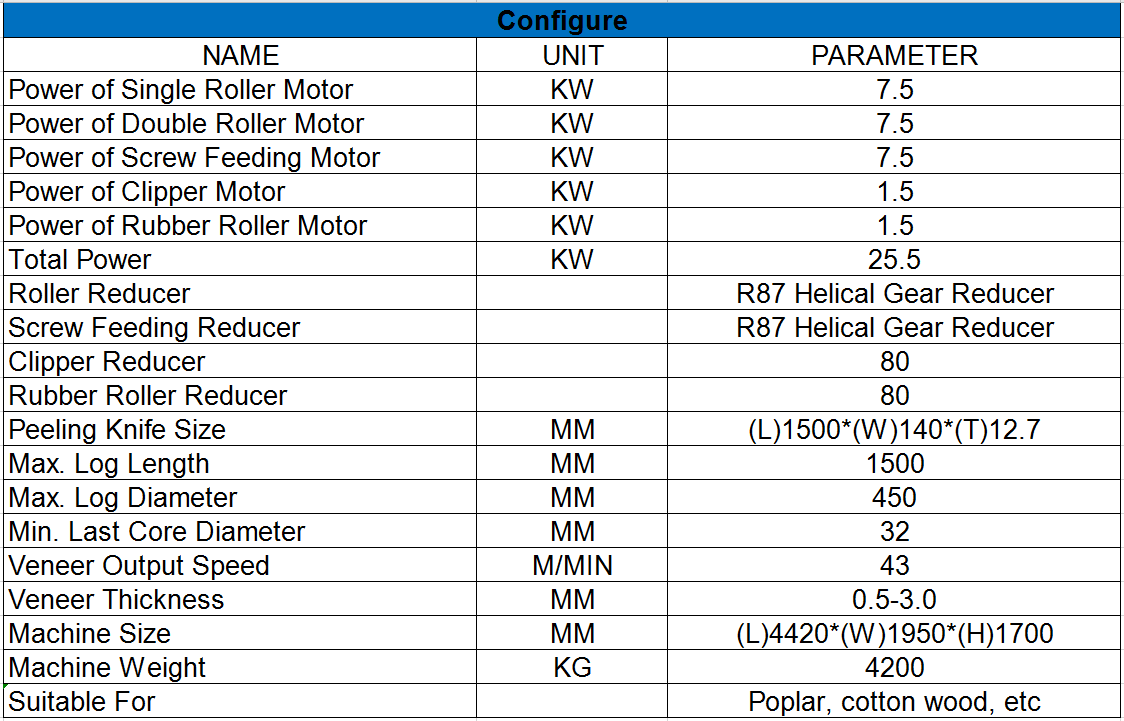

Configure
NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5
Power of Double Roller Motor KW 7.5
Power of Screw Feeding Motor KW 7.5
Power of Clipper Motor KW 1.5
Power of Rubber Roller Motor KW 1.5
Total Power KW 25.5
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
80
Rubber Roller Reducer
80
Segments of Single Roller
2
Segments of Double Roller
1
Diameter of Single Roller MM 125
Diameter of Double Roller MM 125
Diameter of Rubber Roller MM 150
Peeling Knife Size MM (L)1500*(W)140*(T)12.7
Max. Log Length MM 1500
Max. Log Diameter MM 450
Min. Last Core Diameter MM 32
Veneer Output Speed M/MIN 43
Veneer Thickness MM 0.5-3.0
Machine Size MM (L)4420*(W)1950*(H)1700
Machine Weight KG 4200
Suitable For
Poplar, cotton wood, etc

    Can be customized according to customer requirements.


Product Video

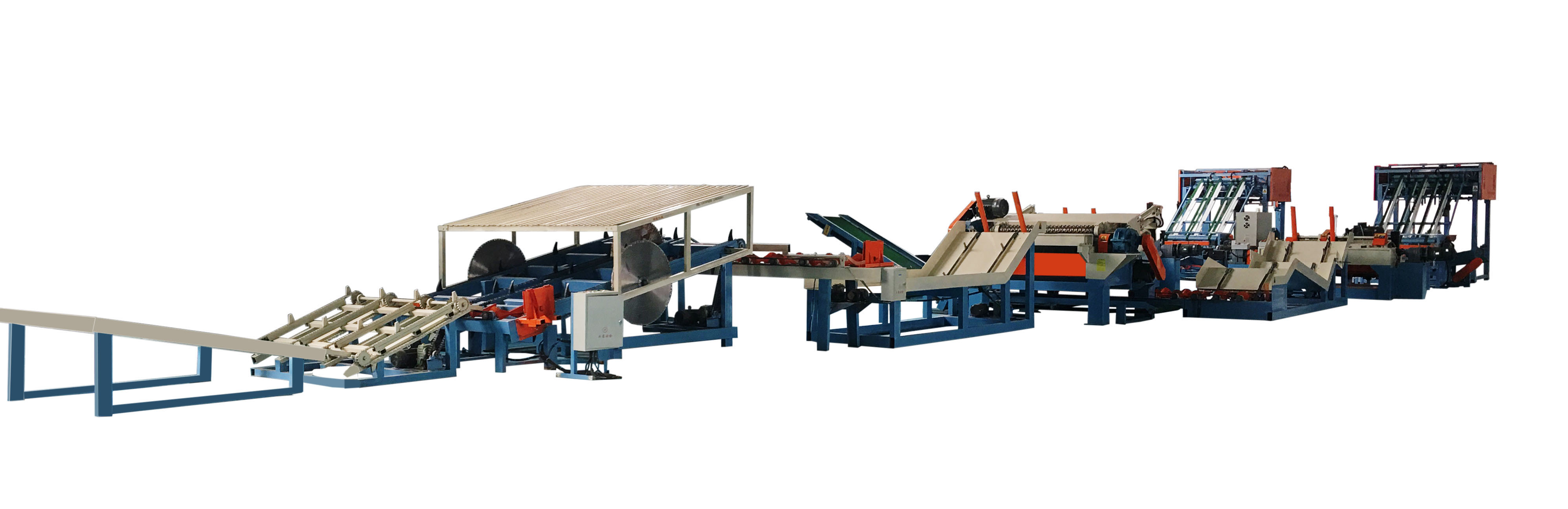

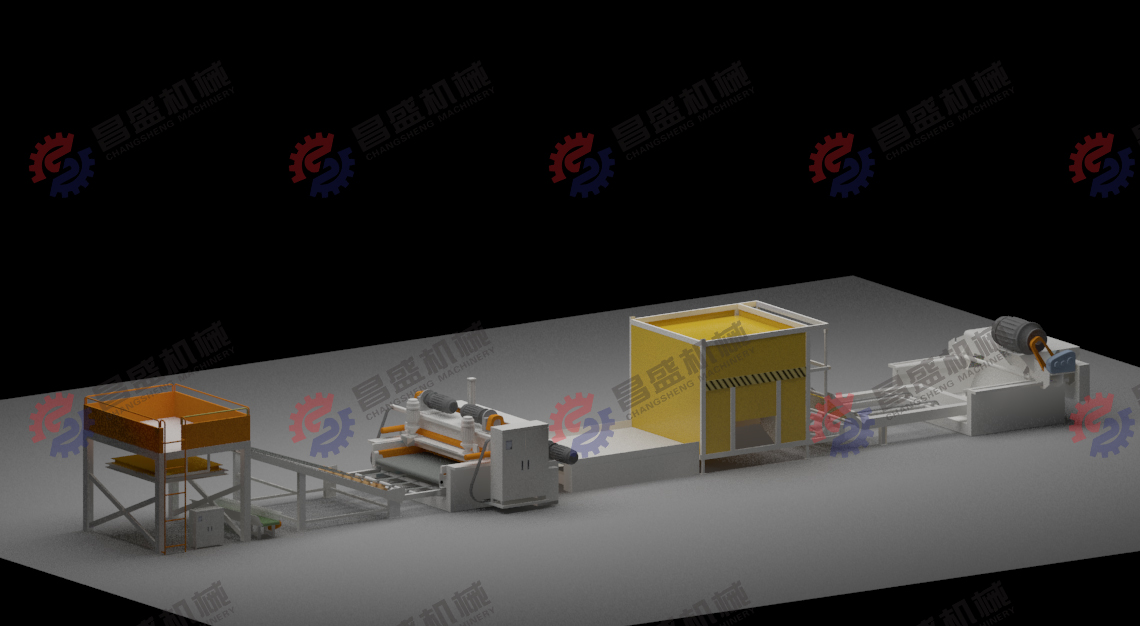

4 feet veneer production line

veneer production line


Log debarker → log transmission machine → log cutting saw → log feeding machine → veneer peeling machine → veneer stacker machine


      We mainly manufacture and supply wood log debarker, veneer peeling machine, veneer drying machine, plywood hot press machine, glue spreader, cold press machine,plywood edge cutting machine,sanding machine.Can customize all the plywood machine according to clients requirements .



services

Pre-sale

1.Free consultation about the equipment.

2.Reasonable purchasing plan and the production line designing plan are offered according to the clients' special requirment to help you to select the most suitable ma.chinery.

3.Welcome to visit our factory and check our machine

During-sales

1.We inspect and test the machine before delivery.

2.We are willing to freely tran your technicist and first-line operator.

After-sales

1.Engineers are available to service overseas.

2.Videos about installing and debuging the equipment.



1_11副本


Q: A FACTORY OR A DEALERS?

A: We are a factory more than 20 years in making wood based panel machines, not a dealers.

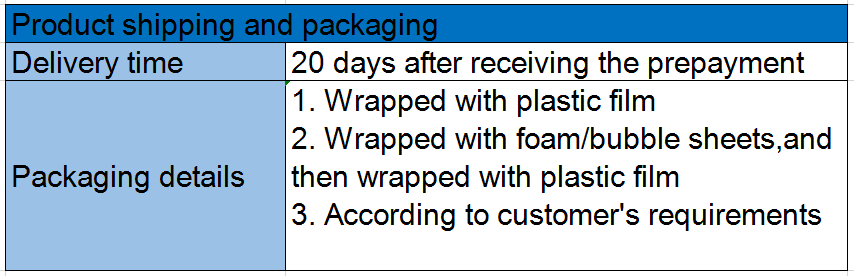

Q: DELIVERY TIME?

A: Generally 20 days after receiving the down payment.

Q: CAN WE GO TO VISIT YOUR FACTORY?

A: Yes, you can visit our factory for free.

Q: SERVICE SYSTEM?

A: One-year warranty, and we supply parts and service all the time.

Q: MOQ?

A: Our MOQ is 1 set.



plywood veneer production line
