English
 |

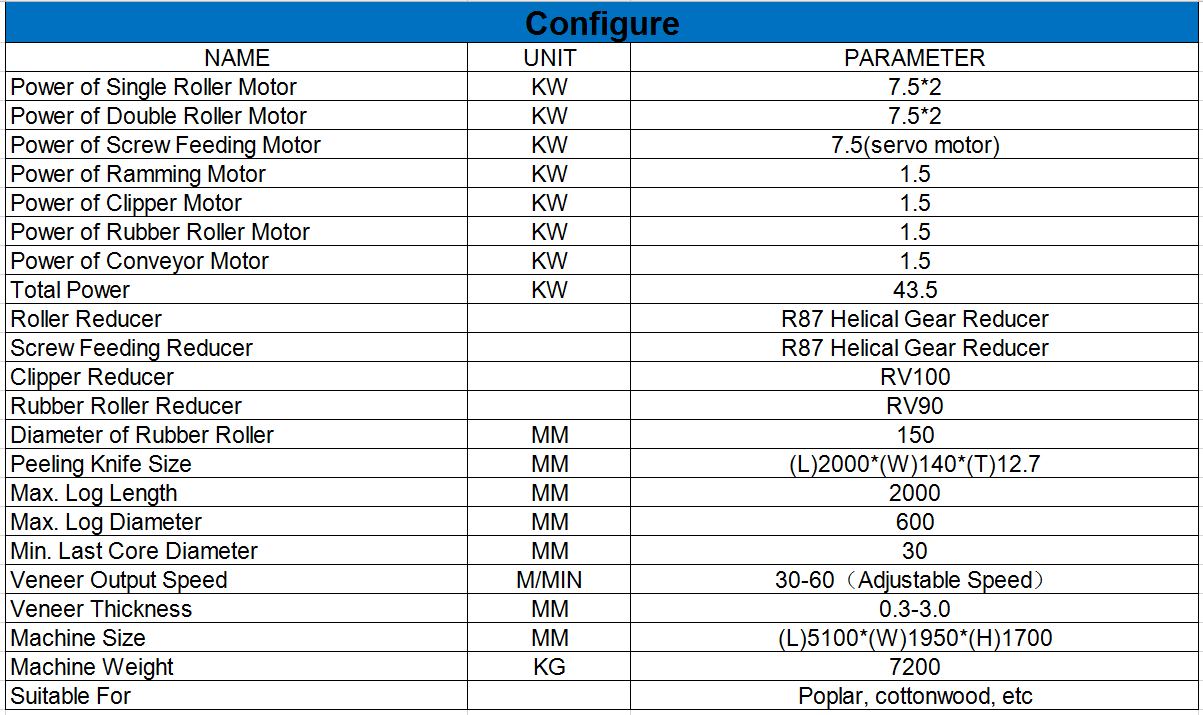

| Total prower: | |
|---|---|
| weigth: | |
| Max. Log Diameter: | |
| Maximum log length: | |
| Quantity: | |
CS-6D2S2G11
Changsheng
8465960000
6 Feet Spindle Less Wood Veneer Peeling Cutting Machine
The wood veneer peeling machine is the main equipment in the production of plywood. The wood veneer peeling machine is closely related to the production and quality of plywood. The veneer rotary cutter is to cut logs of a certain length and diameter into continuous plywood veneers, and cut them into the size required by the plywood.

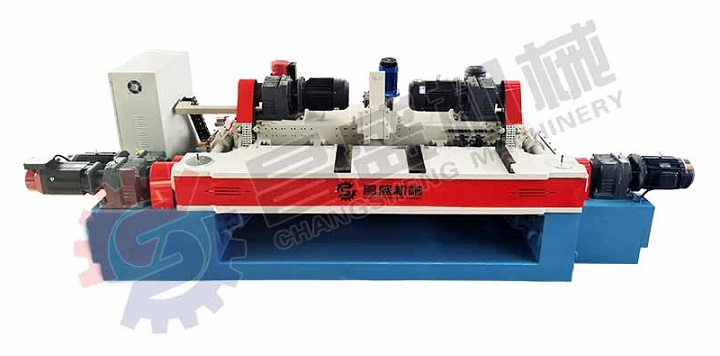

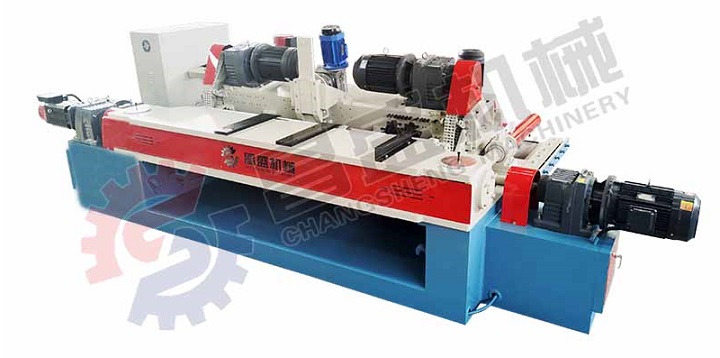

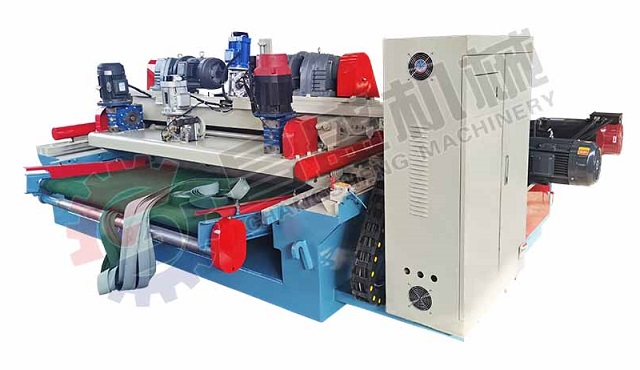

This is a 6 feet plywood veneer peeling machine, the maximum log length that can be processed is 2000mm, and the maximum log diameter that can be processed is 600 mm. The rotary cutting knife and shear knife are combined on one machine and work at the same time.
All the plywood machines we produce can be customized according to your production requirements.
1. Servo motor
The feed motor is a 7.5kw servo motor. It can ensure stable machine operation, stable rotating peeling speed and accurate veneer thickness. Therefore, the machine can produce high-quality veneers
2. Feed screw and nut
This machine uses hardened screws. The feed screw is made of special steel, and the screw nut is made of copper. It has high feeding accuracy and can ensure the precise thickness of the veneer.
3. Rotary cutting and cutting in one
The rotary cutting knife and shear knife are combined on one machine and work at the same time.Reduced space and operators. Greatly reduce costs.
4. Electroplating peeling roller
All the peeling rollers of the wood veneer peeling machine have been quenched and electroplated, and the rigidity is better. We can choose the appropriate roller type according to different types of veneers and wood to meet your different types of wood.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Q&A
Feixian Changsheng Machinery is located in Feixian County, Shandong Rotary Cutting Machine Production Base.

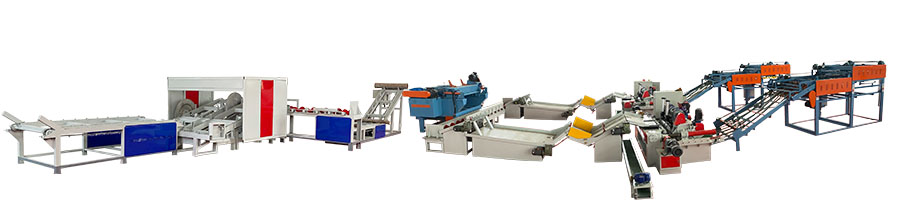

Our company was founded in 1996 and is one of the earliest rotary cutting machine manufacturers in Shandong Province. Our main product includes a log feeding machine, log debarking, wood veneer peeling machine, automatic veneer stacker, knife grinder, veneer dryer as well as whole plywood-veneer production line customizing and parts including a rotary cutter, rubber roller, conveyor belt, etc.
Since its establishment, the company has more than 20 years of experience in the manufacture of rotary cutting machines. Our company provides customers with 24-hour service. Our factory has always adhered to the business philosophy of "survive by quality, develop by innovation", and guided by the six core values of "customer value, teamwork, serious responsibility, the courage to bear, grateful attitude, healthy and fresh". We constantly improve the structure, improve the details, provide customers with better equipment, and create value for customers. our plywood machine has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon, and other more than 30 countries, and has won wide recognition and praise from the customers.
Changsheng people are willing to use high-quality products, perfect service to provide you with a plywood veneers production line solution.
Changsheng Wood Machinery comes from China, serves all the world!
