Plywood Machine 6 Feet Rotary Veneer Peeling Machine
 It is heavy duty veneer peeling machine , machine weight up to 6000 kg , to guarantee the veneer quality . Suitable for Poplar, Eucalyptus etc. Its peeling speed is up to 30- 80 m/min , very high efficiency . Its peeling thickness range is 0.3-3.0 mm , which can satisfy most of your needs |
The 6-foot spindle-less rotary veneer peeling machine is suitable for 6-foot plywood veneer production line.
It is specially used for hardwood rotary cutting with a length of less than 2200 mm. It is a heavy equipment and the machine is stable.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5﹡2 |
| Power of Double Roller Motor | KW | 7.5﹡2 |
| Power of Screw Feeding Motor | KW | 7.5/11(Servo motor) |
| Total Power | KW | 37.5/41 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*(W)1750*(H)1500 |
| Machine Weight | KG | 6000 |
| Suitable For | Poplar, Eucalyptus etc. |
We have 4f, 6f and 8f to meet different requirement. You can choose it according to your demand.
 |  |  |  |  |

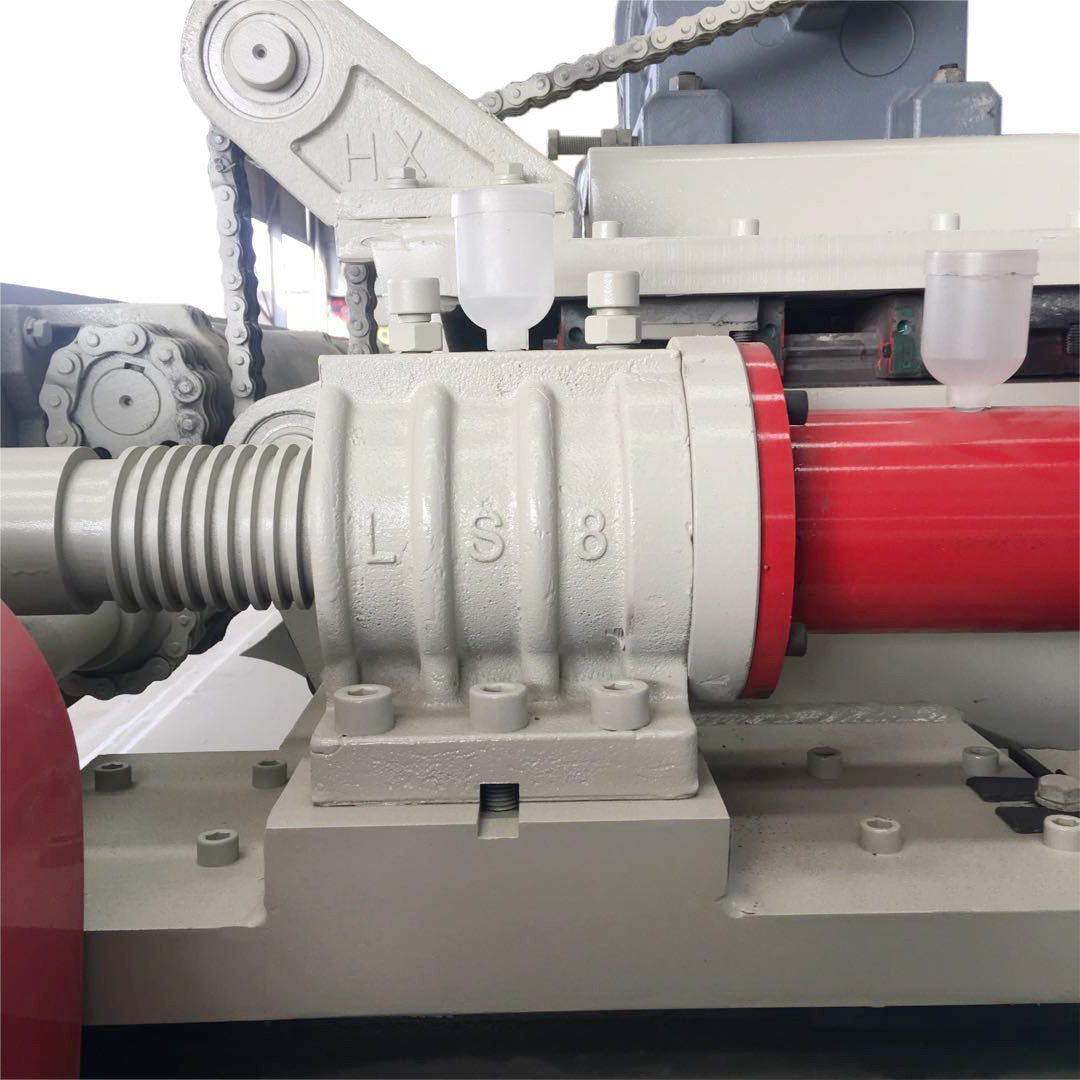

1.Using servo motor drive precision screw feed.
2.Different types of wood can also be cut together without affecting the thickness of the board
3.To change the thickness of Wanner, only need to input numbers, without changing gears, the accuracy is high.
| Pre-sale services: |
| 1) Provide the free consultation of the equipment |
| 2) Provide the standard device and the flow chart |
| 3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment. |
| 4) Welcome to visit our factory |
| Services during the sales: |
| 1) Inspect the machine before leaving the factory. |
| 2) Oversea install and debug the equipment |
| 3) Train the first-line operator. |
| After sale services: |
| 1) 24 hours online service |
| 2) Provide the VIDEO with Install and debug the equipment |
| 3) Provide technical exchanging |
| 4) Door to door service is possible |
