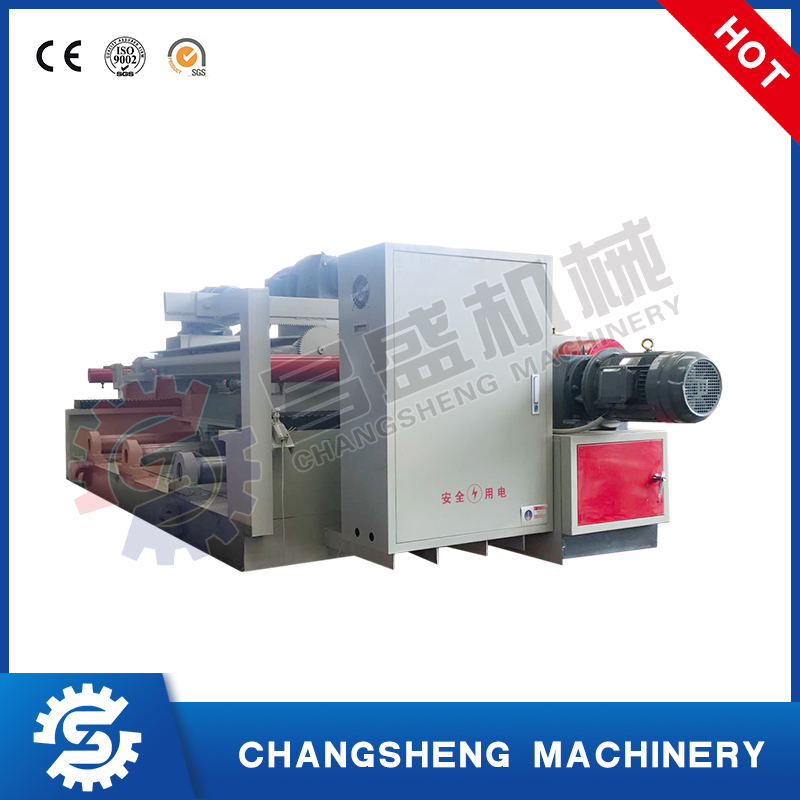

6 Feet Spindleless Veneer Peeling Plywood Machine

This heavy duty veneer peeling macine is specially designed for the rotary cutting of hardwood shoter than 2200mm.This machine runs more stable.

Total Power:
Max. Log Length:
Max. Log Diameter:
Quantity:
  • CS-6D2S2G1F-2
  • Changsheng
  • 8465960000

6 Feet Spindleless Veneer Peeling Plywood Machine



Summary:



The quality of plywood veneer determines the quality of plywood, so controlling the quality of plywood veneer is the premise and the most important part of producing standard plywood.

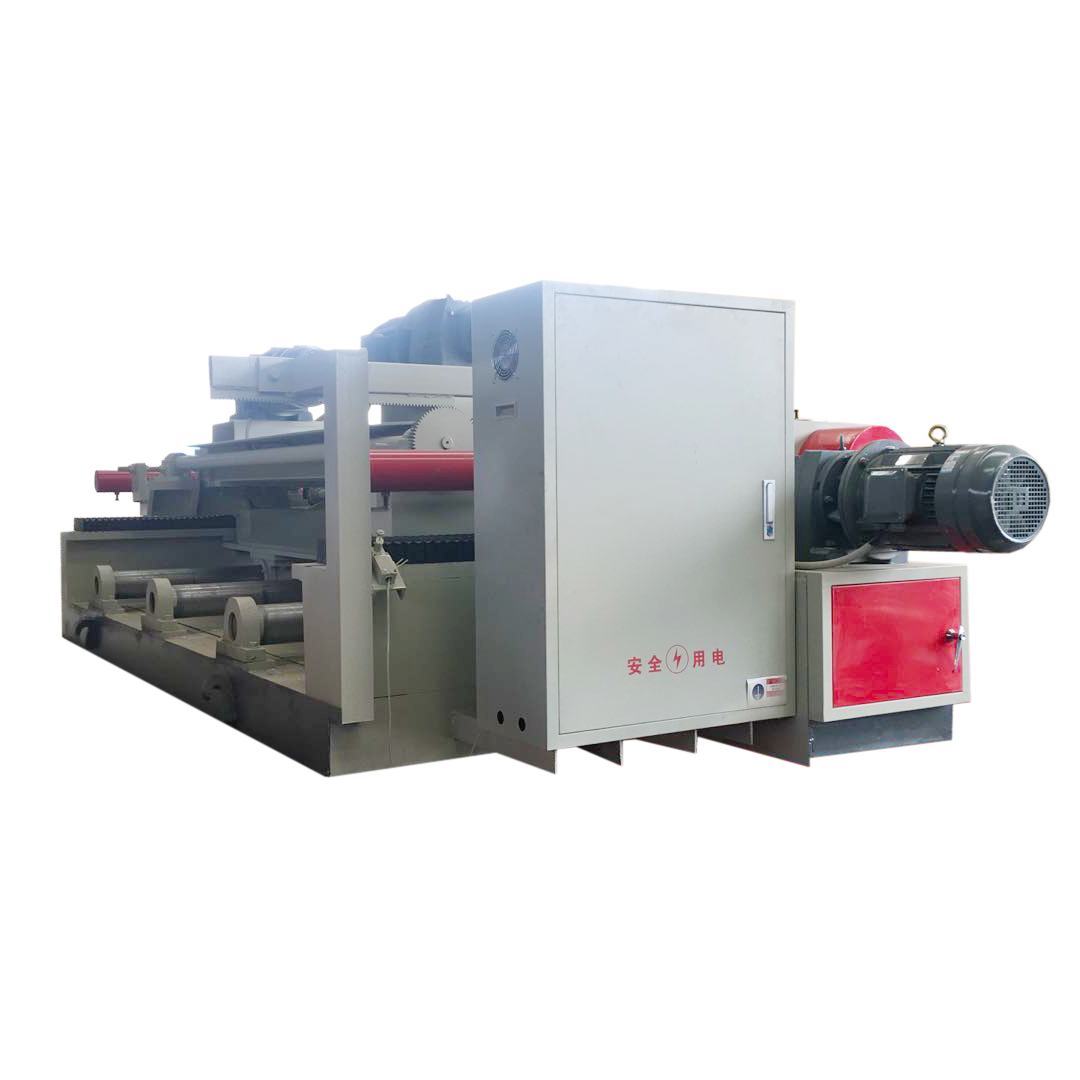

5

      Veneer peeling machine is a very technical equipment in plywood production line equipment.


       This heavy duty veneer peeling macine is specially designed for the rotary cutting of hardwood shoter than 2200mm.This machine runs more stable.



        Easy adjust knife seam function and convenient disassembly.


         The peeled veneer is smooth on both sides.



         Advanced control system and core technology




Machine video:

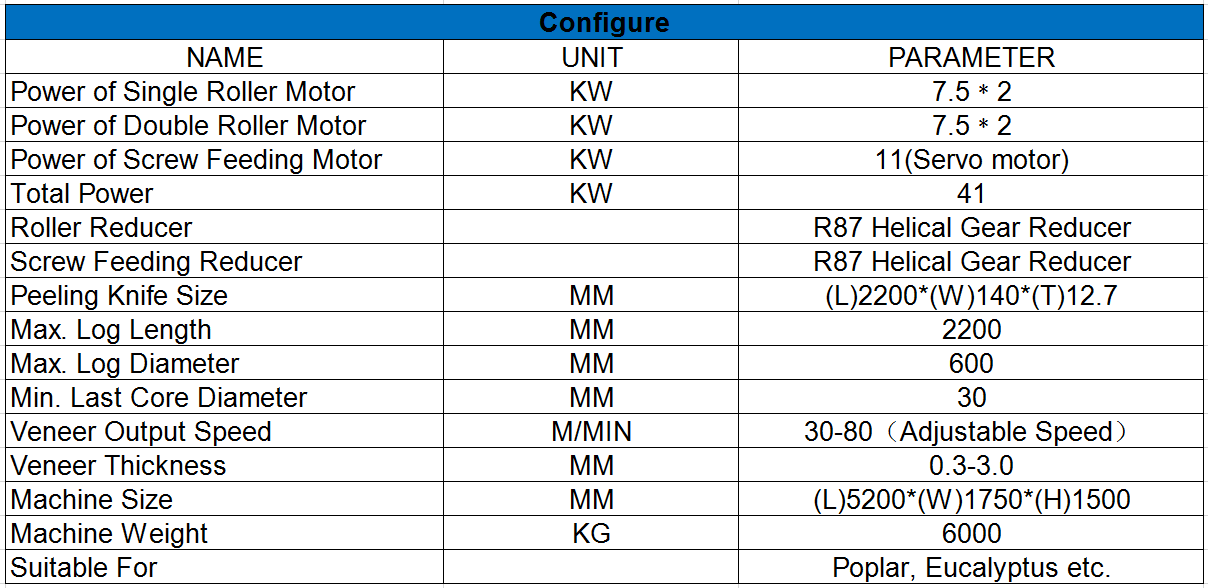

Machine parameters:

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5﹡2
Power of Double Roller Motor KW 7.5﹡2
Power of Screw Feeding Motor KW 7.5/11(Servo motor)
Total Power KW 37.5/41
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Peeling Knife Size MM (L)2200*(W)140*(T)12.7
Max. Log Length MM 2200
Max. Log Diameter MM 600
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-80(Adjustable Speed)
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)5200*(W)1750*(H)1500
Machine Weight KG 6000
Suitable For
Poplar, Eucalyptus etc.

our service

微信图片_20190827161259

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

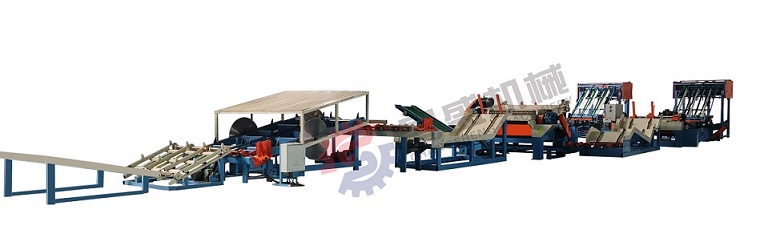

plywood veneer production line

          our equipment has been exported to Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia, Gabon and other more than 30 countries, and has won wide recognition and praise from the customers.
