CS-6D2S2G11
Changsheng
8465960000

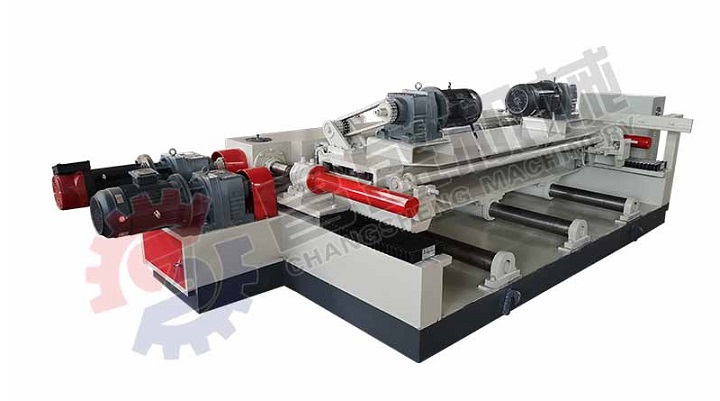

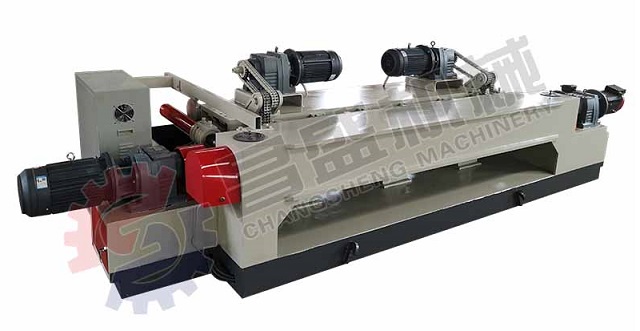

Plywood Making Machine 6 Feet Plywood Veneer Peeling Machine
Plywood making machine : plywood veneer making machine
This machine is 6 feet veneer making machine. It is the main equipment of plywood veneer production and mainly used to rotary peel the Eucalyptus, hybrid wood, etc., and also can peel the left wood log already processed by spindle peeling machine. It is specially used for hardwood rotary cutting with a length of less than 2200 mm, and the maximum log diameter is 600 mm. Production speed is 30-80 m/min. It is heavy equipment and the machine is stable.
1.The feeding motor is an 11kw servo motor. It can guarantee stable machine running, stable rotatory peeling speed, and accurate veneer thickness. So the machine can produce high-quality veneer.
2.The machine uses a Quenching hardened screw. The feeding lead screw is made of special steel, the screw nut is made of copper. It has very high feeding accuracy and guarantees accurate veneer thickness.
3.The power voltage and frequency can be customized according to different countries and regions.
4.All peeling rollers of veneer peeling machine are quenched and electroplating process, the rigidity is better, we can choose the right roller patterns to meet your different wood species according to different kinds of veneer and wood.
5.Taiwan silver linear guide .
All of our plywood making machines can be customized according to your production requirement.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Plywood Making Machine 6 Feet Plywood Veneer Peeling Machine
Plywood making machine : plywood veneer making machine
This machine is 6 feet veneer making machine. It is the main equipment of plywood veneer production and mainly used to rotary peel the Eucalyptus, hybrid wood, etc., and also can peel the left wood log already processed by spindle peeling machine. It is specially used for hardwood rotary cutting with a length of less than 2200 mm, and the maximum log diameter is 600 mm. Production speed is 30-80 m/min. It is heavy equipment and the machine is stable.
1.The feeding motor is an 11kw servo motor. It can guarantee stable machine running, stable rotatory peeling speed, and accurate veneer thickness. So the machine can produce high-quality veneer.
2.The machine uses a Quenching hardened screw. The feeding lead screw is made of special steel, the screw nut is made of copper. It has very high feeding accuracy and guarantees accurate veneer thickness.
3.The power voltage and frequency can be customized according to different countries and regions.
4.All peeling rollers of veneer peeling machine are quenched and electroplating process, the rigidity is better, we can choose the right roller patterns to meet your different wood species according to different kinds of veneer and wood.
5.Taiwan silver linear guide .
All of our plywood making machines can be customized according to your production requirement.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
