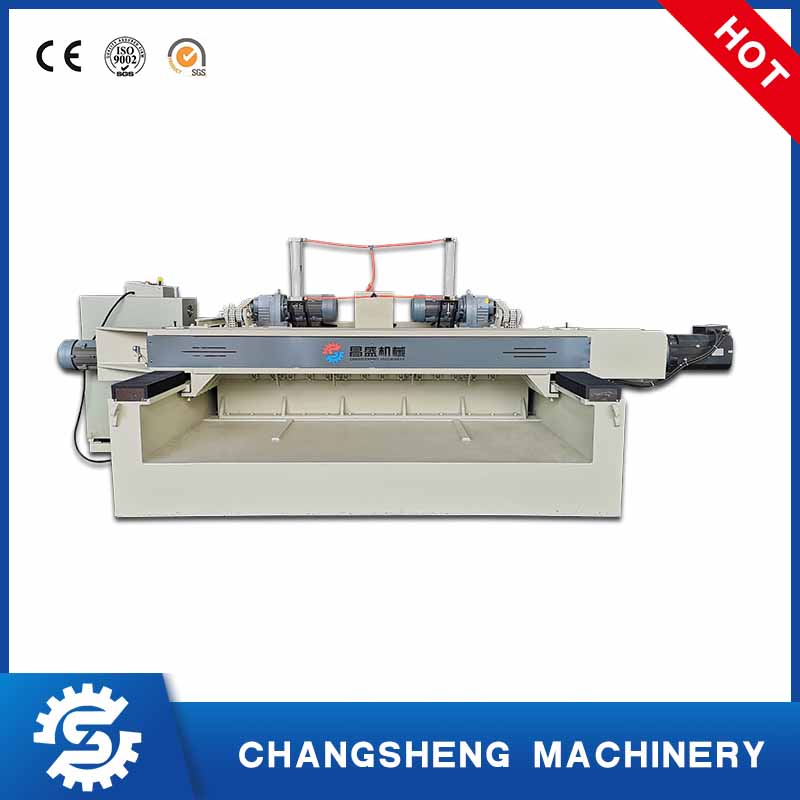

Hydraulic 6 Feet Plywood Veneer Peeling Machine
 This spindle less rotary cutter is used in 6-feet plywood veneer production line, mainly used for veneer production.
This machine adopts new type feeding method, the double rollers base move toward single roller base by the leading of of linear guiding rail. This machine can produce more standard veneers.And the output will be 15% higher than common machine. |
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5/11(servo motor) |
| Power of Clipper Motor | KW | 2.2 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 41.9/45.4 |
| Guiding rail type | HIWIN Linear guiding rail | |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*（W)1750*(H)1500 |
| Machine Weight | KG | 7500 |
| Suitable For | Poplar, Eucalyptus etc. |
The main products are rotary cutting machine, log rounding machine, veneer stacker, knife sharpener and dryer and other related equipment. All equipment can be customized according to your needs.
 Our service Presale service 1.Make reliable pratical mechine list and production proposal free of charge, according to customers' actual situation 2.Design the machine free of charge, according to customer's production line and production cost, 3. Make the workshop and production line layout free of charge, according to customers' factory land. Medium-sales service 1.Video for the manufacturing process as customers requirement. 2.Machine modifying according customers' suggestion. 3.Order the shipment and prepare the documents for customers' clearance, according to customers' custom requirement. After-sale services 1.One year warranty for main machine, cost price for vunerable parts. 2.Experienced engineer is avaiable for the machine installation and worker training. |
 Shandong Changsheng Wood Industry Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest man-made board production base in China. After more than 20 years of continuous development, Changsheng Wood Industry Machinery has become a modern company integrating design, development, production and installation of plywood production machinery. |
 In terms of production technology, the company currently has 10 senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, the company is equipped with plasma cutting machine, laser cutting machine, Lincoln brand carbon dioxide protection welding machine and other welding and cutting equipment. Our company has established friendly business cooperation relations with famous brands such as Siemens Motors, WEG Motors, Delta PLC, Huichuan Inverter, etc. to ensure the quality of our products. |
Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs. |
 High-quality product quality and intimate customer service are the biggest responsibility of Changsheng Wood Industry Machinery to each customer. The company provides customers with 24-hour service. The company adheres to the business philosophy of "survive by quality and develop by innovation". The products have been exported to more than 30 countries including Canada, Mexico, Brazil, Russia, India, Indonesia, Vietnam, Ethiopia and Gabon. And regions, and won wide recognition and praise from domestic and foreign customers. |
Every Changsheng people firmly believes that 'creating value for customers' is creating value for ourselves.
I believe that in the days to come, we will work together with our customers to achieve a win-win situation and will create a better tomorrow.
Changsheng Wood Machinery comes from China, serves all the world!
