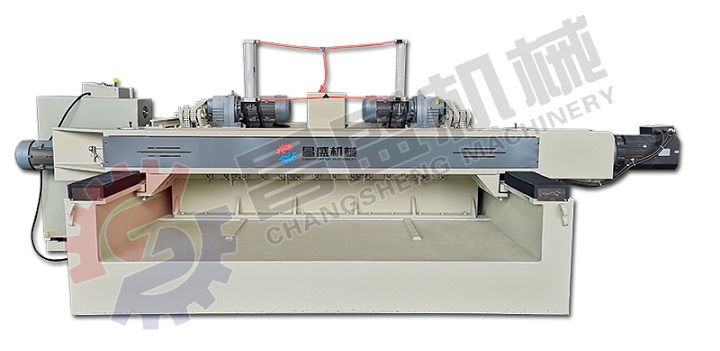

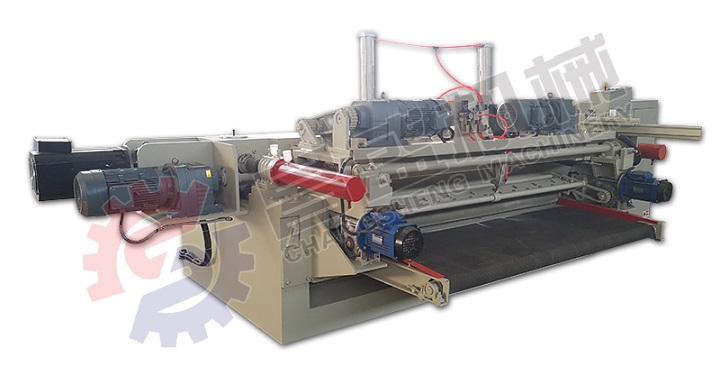

Automatic 6 Feet Wood Veneer Peeling Machine

This equipment adopts linear guide and double friction rollers to advance and retreat, which makes the veneer produced by this equipment have a standard size and uniform thickness, which is 15% higher than the ordinary rotary cutting machine.

weigth:
Machine Size:
Veneer Output Speed:
Quantity:

Automatic 6 Feet Wood Veneer Peeling Machine

Overview

6 feet veneer peeling machine

        This equipment adopts linear guide and double friction rollers to advance and retreat, which makes the veneer produced by this equipment have a standard size and uniform thickness, which is 15% higher than the ordinary rotary cutting machine.

Product Description



6 feet automatic wood veneer peeling machine

1.Use cylinder to hit wood core.

2.Advanced control system and core technology.

3.Automatic speed down when peeling end.

4.The double-roller moving seam size is more stable than the single-roller movement, and it is more energy-efficient.

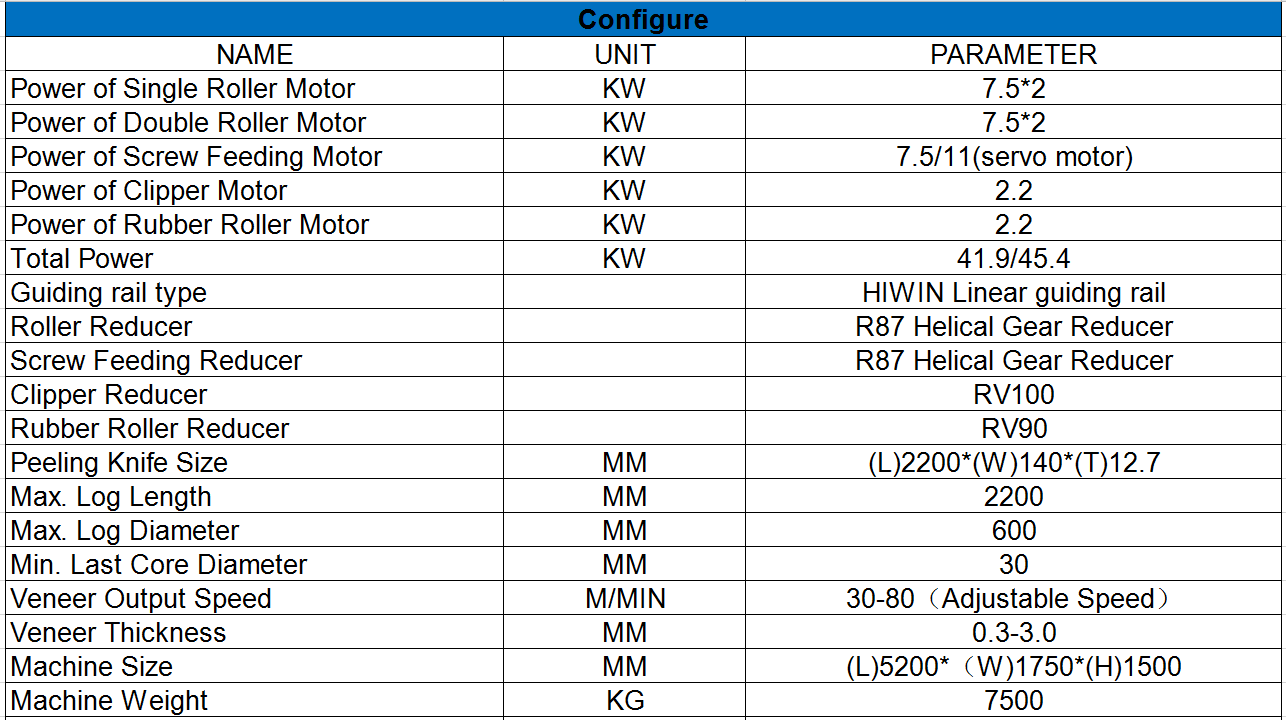

NAME UNIT PARAMETER
Power of Single Roller Motor KW 7.5*2
Power of Double Roller Motor KW 7.5*2
Power of Screw Feeding Motor KW 7.5/11(servo motor)
Power of Clipper Motor KW 2.2
Power of Rubber Roller Motor KW 2.2
Total Power KW 41.9/45.4
Guiding rail type
HIWIN Linear guiding rail
Roller Reducer
R87 Helical Gear Reducer
Screw Feeding Reducer
R87 Helical Gear Reducer
Clipper Reducer
RV100
Rubber Roller Reducer
RV90
Peeling Knife Size MM (L)2200*(W)140*(T)12.7
Max. Log Length MM 2200
Max. Log Diameter MM 600
Min. Last Core Diameter MM 30
Veneer Output Speed M/MIN 30-80(Adjustable Speed)
Veneer Thickness MM 0.3-3.0
Machine Size MM (L)5200*(W)1750*(H)1500
Machine Weight KG 7500
Suitable For
Poplar, Eucalyptus etc.

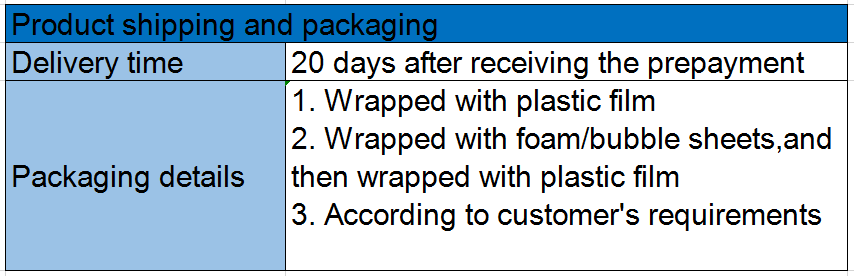

Packaging & Shipping
发货-1




Strentch film / according to customers requirement


Our Services
services

Pre-sale services:

1) Provide the free consultation of the equipment

2) Provide the standard device and the flow chart

3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

4) Welcome to visit our factory

Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment

3) Train the first-line operator.

After sale services:

1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

4) Door to door service is possible

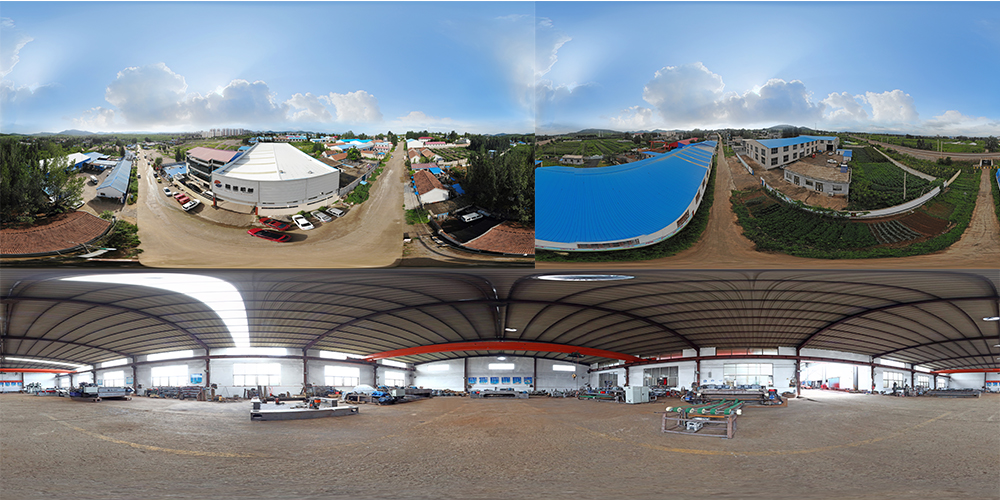

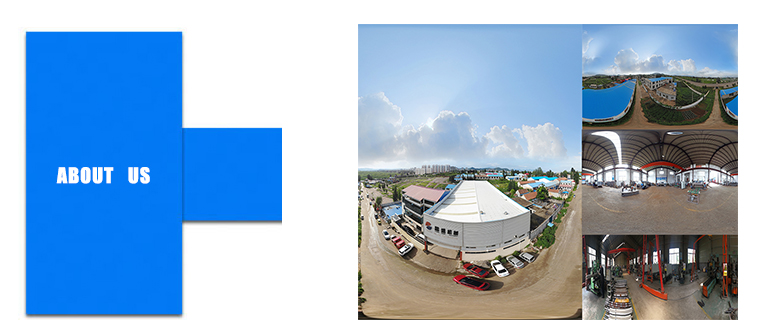

Company Information

       Feixian Changsheng Machinery is located in Feixian County, Shandong Rotary Cutting Machine Production Base.

      The company was founded in 1996 and is one of the earliest rotary cutting machine manufacturers in Shandong Province. Our main product includes veneer peeling machine, log debarking and rounding machine, automatic stacker, log feeding machine as well as whole plywood veneer production line customizing and parts including rotary cutter, rubber roller,conveyor belt etc. Since its establishment, the company has more than 20 years of experience in the manufacture of rotary cutting machines. Our factory has always adhered to the business philosophy of "survive by quality, develop by innovation", and guided by the six core values of "customer value, teamwork, serious responsibility, courage to bear, grateful attitude, healthy and fresh". We constantly improve the structure, improve the details, provide customers with better equipment and create value for customers. Changsheng people are willing to use high-quality products, perfect service to provide you with a plywood veneers production line solution

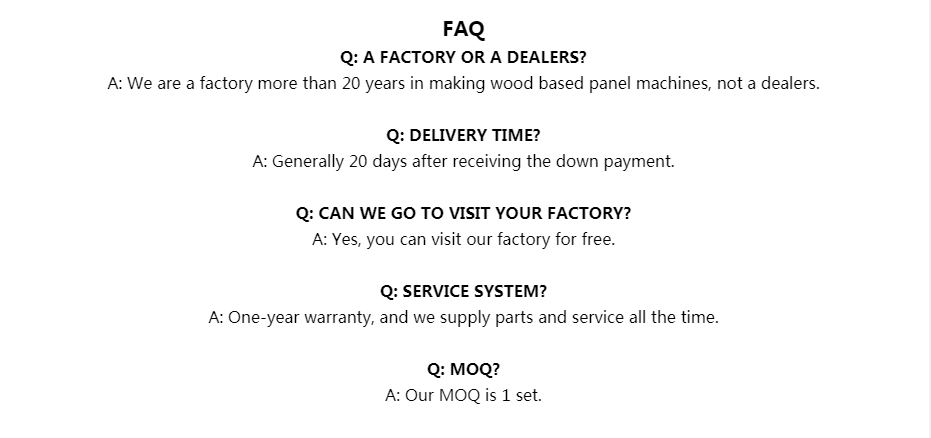

FAQ

微信图片_20190828142329
