CS-6D2S1G11
Changsheng
8465960000

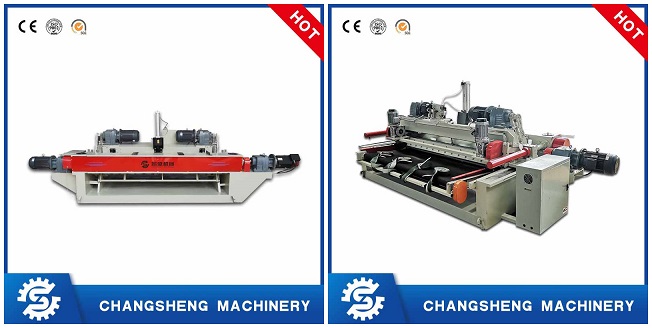

6 Feet Spindleless Core Veneer Peeling Machine
The purpose of this veneer peeling machine is to cut logs below 2200 mm. Rotary cut veneer thickness range is 0.3-3.0 mm.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 5.5*2 |
| Power of Double Roller Motor | KW | 7.5 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 4 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 32.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R97 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Diameter of Rubber Roller | MM | 150 |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-60（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*(W)2000*(H)1700 |
| Machine Weight | KG | 7000 |
| Suitable For | Poplar, cottonwood, etc |
2.Cutting diameter 600mm
3.Cutting length 2200 mm
4. Veneer thickness 0.3-3.0mm
This machine is used to peelling log skin to core veneer and continue peeling log core after spindle peeling. It is very popular for plywood industry.
1. CNC Spindle less Veneer Peeling Lathe

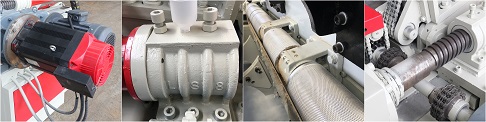

2. Servo motor , Precision hardened gear reducer
We have 4feet ,6 feet and 8feet to meet different requirement. You can choose it according to your demand.
Shandong Changsheng Wood Machinery Co., Ltd. is located in Linyi City, Shandong Province, the largest wood-based panel production base in China. After more than 20 years of continuous development, Changsheng Wood Machinery has become a modern company integrating design, development, manufacturing and installation of plywood production machinery.
In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
Changsheng Wood Machinery comes from China, serves all the world!
