CS-6D2S2G1F
Changsheng
8465960000
6 Feet Spindleless Face Veneer Peeling Machine
The device is important equipment on the plywood or veneer production line, especially suitable for rotary cutting eucalyptus wood, birch, hard wood, etc.
It is heavy duty veneer peeling machine , machine weight up to 6000 KG , to guarantee the veneer quality
Configure
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5﹡2 |
| Power of Double Roller Motor | KW | 7.5﹡2 |
| Power of Screw Feeding Motor | KW | 7.5/11(Servo motor) |
| Total Power | KW | 37.5/41 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*(W)1750*(H)1500 |
| Machine Weight | KG | 6000 |
| Suitable For | Poplar, Eucalyptus etc. |
Its peeling speed is up to 30- 80 m/min , very high efficiency .

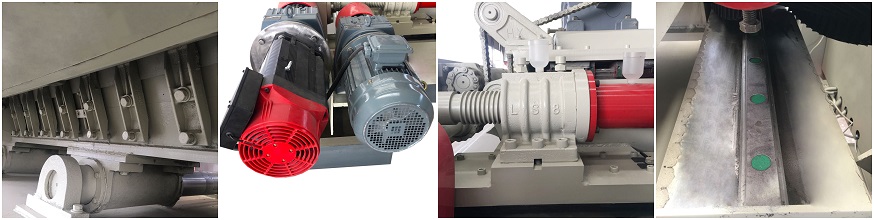

Wood veneer machine driven by servo motor and precision screw feed.
Its peeling thickness range is 0.3-3.0 mm , which can satisfy most of your needs.

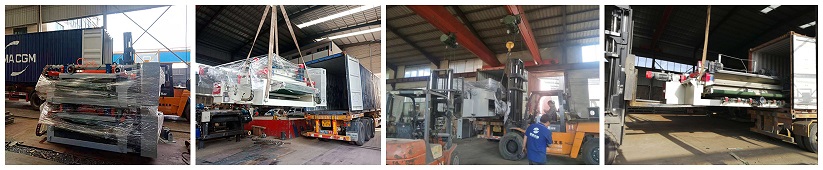

Packaging Details: If container is too tigher,we will use pe film for packing or pack it according to customers special request.
