CS-6D2S2G11SP
Changsheng
8465960000

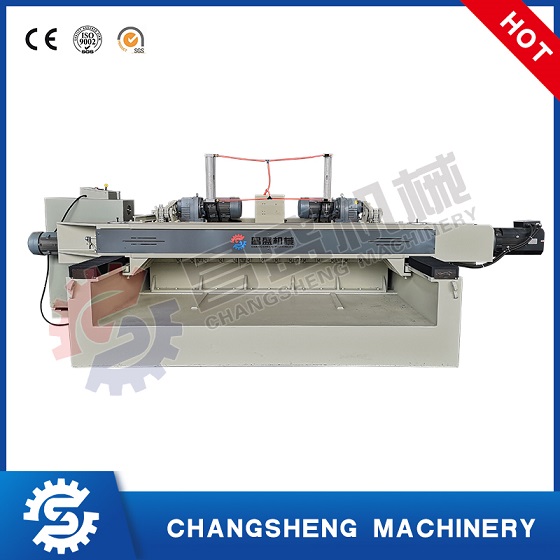

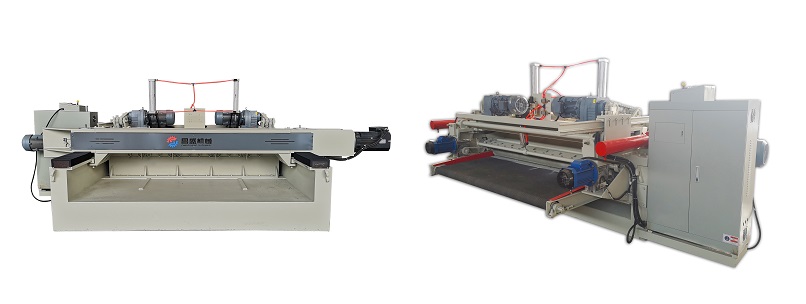

6 Feet Spindleless Rotary Veneer Peeling Machine
Product Description:
1. Automatic Servo Motors
2. High speed and adjustable speed from 30-80 m/min
3. Both side of core veneer will be smooth
4. High thickness of steel frame makes the weight heavy
5. Voltage can adjust according to different countries situation
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 7.5*2 |
| Power of Double Roller Motor | KW | 7.5*2 |
| Power of Screw Feeding Motor | KW | 7.5/11(servo motor) |
| Power of Clipper Motor | KW | 2.2 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 41.9/45.4 |
| Guiding rail type | HIWIN Linear guiding rail | |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R87 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-80（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*（W)1750*(H)1500 |
| Machine Weight | KG | 7500 |
| Suitable For | Poplar, Eucalyptus etc. |
Can be customized according to customer requirements.

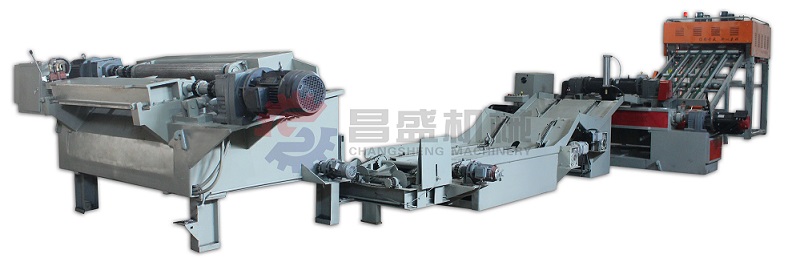

In terms of production technology, our company has ten senior engineers, more than 30 technicians, and more than 20 machine innovation patents. In terms of production equipment, our company is equipped with plasma cutting machines, laser cutting machines, Lincoln brand carbon dioxide protection welding machines and other welding and cutting equipment. And we have established friendly business relationship with famous brands spare parts supplier such as Siemens Motor, WEG Motor, Delta PLC, Inovance Inverter etc. Our main products are veneer peeling machine, log debarking machine, veneer stacking machine, peeling knife sharpening machine and veneer dryer and other related equipment. And our company can provide customers with a complete set of plywood production solutions according to customer needs.
