CS-6D2S1G1
Changsheng
8465960000
6 Feet Spindleless Wood Veneer Peeling Machine

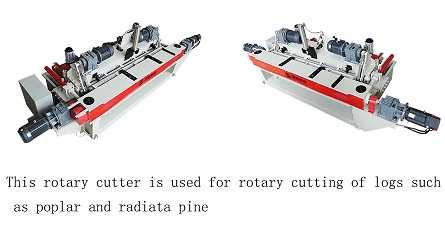

This veneer peeling machine is used for 2200 mm log rotary cutting. It is a two-in-one rotary cutting and cutting machine.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 5.5*2 |
| Power of Double Roller Motor | KW | 7.5 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 4 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 32.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R97 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Diameter of Rubber Roller | MM | 150 |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-60（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*(W)2000*(H)1700 |
| Machine Weight | KG | 7000 |
| Suitable For | Poplar, cottonwood, etc |
6 Feet Spindleless Wood Veneer Peeling Machine
This veneer peeling machine is used for 2200 mm log rotary cutting. It is a two-in-one rotary cutting and cutting machine.
| NAME | UNIT | PARAMETER |
| Power of Single Roller Motor | KW | 5.5*2 |
| Power of Double Roller Motor | KW | 7.5 |
| Power of Screw Feeding Motor | KW | 7.5(servo motor) |
| Power of Clipper Motor | KW | 4 |
| Power of Rubber Roller Motor | KW | 2.2 |
| Total Power | KW | 32.2 |
| Roller Reducer | R87 Helical Gear Reducer | |
| Screw Feeding Reducer | R97 Helical Gear Reducer | |
| Clipper Reducer | RV100 | |
| Rubber Roller Reducer | RV90 | |
| Diameter of Rubber Roller | MM | 150 |
| Peeling Knife Size | MM | (L)2200*(W)140*(T)12.7 |
| Max. Log Length | MM | 2200 |
| Max. Log Diameter | MM | 600 |
| Min. Last Core Diameter | MM | 30 |
| Veneer Output Speed | M/MIN | 30-60（Adjustable Speed） |
| Veneer Thickness | MM | 0.3-3.0 |
| Machine Size | MM | (L)5200*(W)2000*(H)1700 |
| Machine Weight | KG | 7000 |
| Suitable For | Poplar, cottonwood, etc |
